W30

Nissan LARGO · 1993 · 4,361 parts · 607 categories

4,361 items

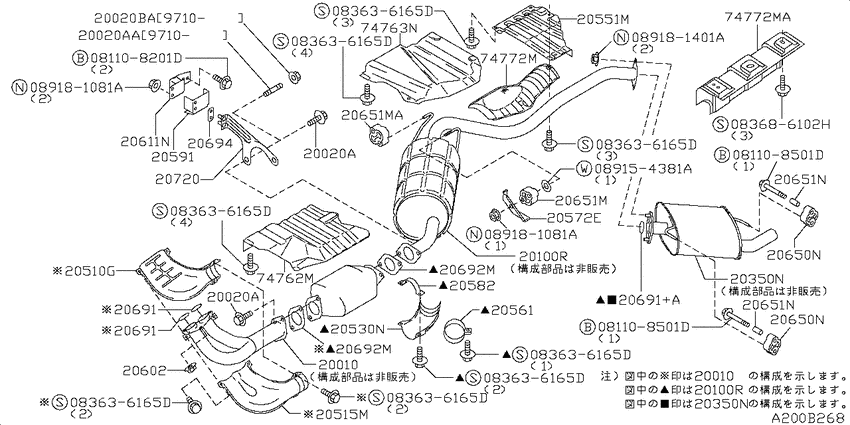

Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE) 21

#	OEM	Part name
20010	20010-5C525	Tube Assy-Exhaust, Front
20510	20510-5C500	Insulator Assy-Front Tube
20515	20515-5C500	Insulator-Heat, Front Tube Lh
20530	20530-5C500	Insulator Assy-Center Tube, Lower
20551	20554-5C000	Insulator-Rear Tube, Lower
20561	20561-G5400	Clamp-Heat Insulator, Front
20572	20595-5C500	Insulator
20582	20582-5C010	Support-Heat Insulator
20591	20591-5C500	Insulator-Flange
20602	20602-41G00	Nut-Fix, Exhaust Tube
20651	20651-5C000	Mounting-Exhaust, Rubber
20651	20651-5C010	Mounting-Exhaust, Rubber
20694	20694-W1080	Insulator-Heat, Exhaust
20720	20720-5C500	Mounting Assy-Exhaust
74762	74762-6C200	Insulator-Heat, Rear Floor Front
74763	74763-5C000	Insulator-Heat, Rear Floor Lh
74772	74772-5C000	Insulator-Heat, Rear Floor Rear
74772	74772-6C200	Insulator-Heat, Trunk Floor
74772	74772-6C300	Insulator-Heat, Trunk Floor
83636165	08363-6165D	Rope & Hook
83686102	08368-6102H	スクリユ-

OEM	Part name	Category
08363-6165D	Rope & Hook	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
08368-6102H	スクリユ-	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20010-5C525	Tube Assy-Exhaust, Front	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20510-5C500	Insulator Assy-Front Tube	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20515-5C500	Insulator-Heat, Front Tube Lh	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20530-5C500	Insulator Assy-Center Tube, Lower	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20554-5C000	Insulator-Rear Tube, Lower	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20561-G5400	Clamp-Heat Insulator, Front	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20582-5C010	Support-Heat Insulator	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20591-5C500	Insulator-Flange	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20595-5C500	Insulator	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20602-41G00	Nut-Fix, Exhaust Tube	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20651-5C000	Mounting-Exhaust, Rubber	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20651-5C010	Mounting-Exhaust, Rubber	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20694-W1080	Insulator-Heat, Exhaust	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
20720-5C500	Mounting Assy-Exhaust	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
74762-6C200	Insulator-Heat, Rear Floor Front	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
74763-5C000	Insulator-Heat, Rear Floor Lh	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
74772-5C000	Insulator-Heat, Rear Floor Rear	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
74772-6C200	Insulator-Heat, Trunk Floor	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
74772-6C300	Insulator-Heat, Trunk Floor	Exhaust tube & muffler (1997-10-01 ~ ; (4WD.7P+4WD.8P).KA24DE)
