W30

Nissan LARGO · 1993 · 4,361 parts · 607 categories

4,361 items

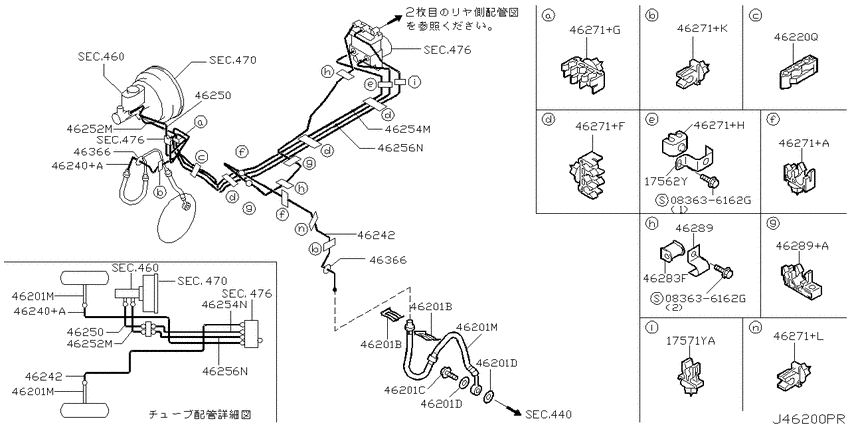

Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P)) 22

#	OEM	Part name
17562	17562-1C000	Clip
17571	17571-0C400	Clip
46201	46206-2J000	Spring-Lock
46201	46356-0E000	BOLT-UNION,FRONT BRAKE HOSE
46240	46240-6C510	Tube Assy-Brake, Front Rh
46242	46242-6C510	Tube Assy-Brake, Front Lh
46250	46250-1C000	Tube Assy-Brake, Front Master Cylinder
46250	46250-1C010	Tube Assy-Brake, Front Master Cylinder
46250	46250-4C010	Tube Assy-Brake, Front Master Cylinder
46252	46252-1C000	Tube Assy-Brake, Rear Master Cylinder
46252	46252-1C010	Tube Assy-Brake, Rear Master Cylinder
46252	46252-4C010	Tube Assy-Brake, Rear Master Cylinder
46254	46254-6C500	Tube Assy-Brake, Front Conn To Actuator
46256	46256-6C500	Tube Assy-Brake, Rear Conn To Actuator
46271	46271-50L00	Clamp-Vacuum Brake
46271	46271-0C005	Clip-Tube, Brake
46271	46271-30W00	Insulator
46271	46271-1C000	Clip-Tube, Brake
46271	46271-08W00	Clip
46283	46283-89916	Insulator
46289	46289-89908	Clamp
46289	46289-0C010	Clamp

OEM	Part name	Category
17562-1C000	Clip	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
17571-0C400	Clip	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46206-2J000	Spring-Lock	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46240-6C510	Tube Assy-Brake, Front Rh	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46242-6C510	Tube Assy-Brake, Front Lh	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46250-1C000	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46250-1C010	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46250-4C010	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46252-1C000	Tube Assy-Brake, Rear Master Cylinder	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46252-1C010	Tube Assy-Brake, Rear Master Cylinder	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46252-4C010	Tube Assy-Brake, Rear Master Cylinder	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46254-6C500	Tube Assy-Brake, Front Conn To Actuator	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46256-6C500	Tube Assy-Brake, Rear Conn To Actuator	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46271-08W00	Clip	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46271-0C005	Clip-Tube, Brake	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46271-1C000	Clip-Tube, Brake	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46271-30W00	Insulator	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46271-50L00	Clamp-Vacuum Brake	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46283-89916	Insulator	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46289-0C010	Clamp	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46289-89908	Clamp	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
46356-0E000	BOLT-UNION,FRONT BRAKE HOSE	Brake piping & control (1996-10-01 ~ 1997-10-01; !フロントパイピング(ABS付き); W.(4WD.7P+4WD.8P))
