W11

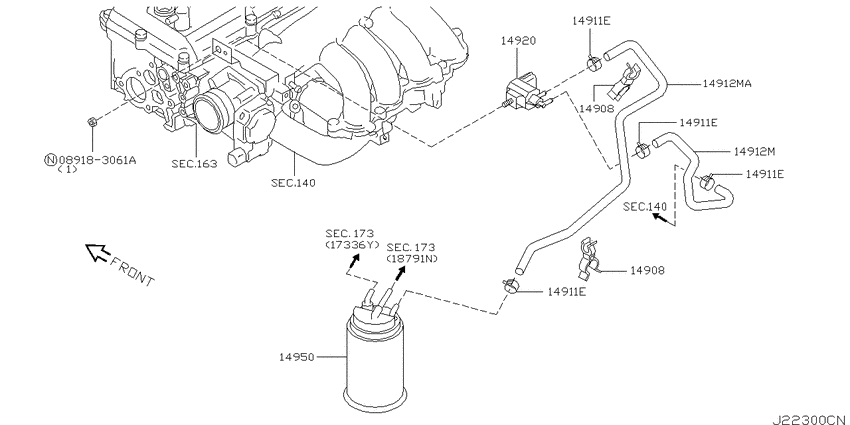

Vacuum piping (2002-08-01 ~ ; QR20DE) 5
| # | OEM | Part name |
|---|---|---|
| 14908 | 24220-WF700 | Clip-Hose |
| 14911 | 01558-00401 | CLAMP-HOSE |
| 14912 | 22320-WA910 | Hose-Evap Control |
| 14920 | 14930-AH100 | Valve Assy-Control |
| 14950 | 14950-3Y502 | Canister Assy-Evaporation |
| OEM | Part name | Category |
|---|---|---|
| 01558-00401 | CLAMP-HOSE | Vacuum piping (2002-08-01 ~ ; QR20DE) |
| 14930-AH100 | Valve Assy-Control | Vacuum piping (2002-08-01 ~ ; QR20DE) |
| 14950-3Y502 | Canister Assy-Evaporation | Vacuum piping (2002-08-01 ~ ; QR20DE) |
| 22320-WA910 | Hose-Evap Control | Vacuum piping (2002-08-01 ~ ; QR20DE) |
| 24220-WF700 | Clip-Hose | Vacuum piping (2002-08-01 ~ ; QR20DE) |
