W11

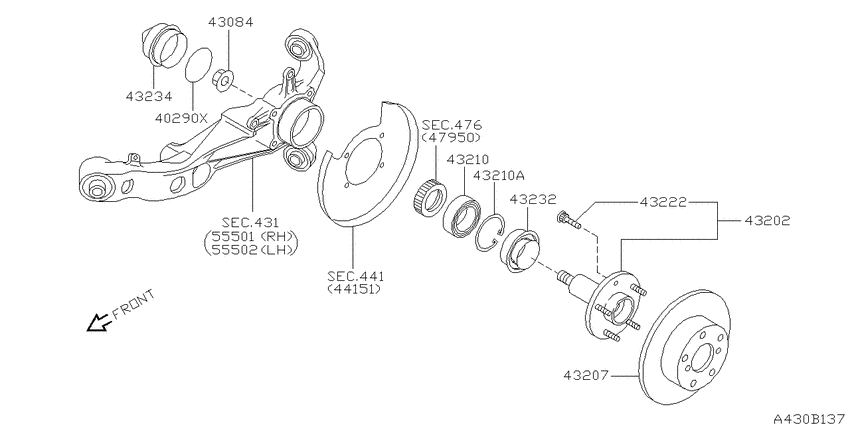

Rear axle (2002-08-01 ~ ; QR20DE.MCVT) 4
| # | OEM | Part name |
|---|---|---|
| 43202 | 43202-WA000 | Hub Assy-Rear |
| 43207 | 43206-2Y003 | Rotor-Disc Brake, Rear |
| 43210 | 40210-33P02 | Bearing Assy-Front Wheel |
| 43232 | 40232-33P10 | Seal-Grease, Front Hub |
| OEM | Part name | Category |
|---|---|---|
| 40210-33P02 | Bearing Assy-Front Wheel | Rear axle (2002-08-01 ~ ; QR20DE.MCVT) |
| 40232-33P10 | Seal-Grease, Front Hub | Rear axle (2002-08-01 ~ ; QR20DE.MCVT) |
| 43202-WA000 | Hub Assy-Rear | Rear axle (2002-08-01 ~ ; QR20DE.MCVT) |
| 43206-2Y003 | Rotor-Disc Brake, Rear | Rear axle (2002-08-01 ~ ; QR20DE.MCVT) |
