| 01121-00933 |
BOLT |

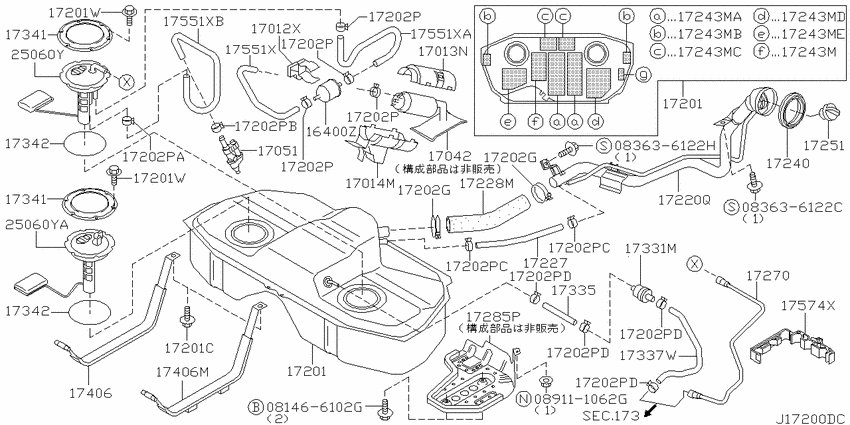

Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 01555-00291 |
CLAMP-HOSE |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 01558-00121 |
CLAMP |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 01558-00401 |
CLAMP-HOSE |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 08363-6122C |
スクリユ-,マシン |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 08363-6122H |
SCREWMACHINE |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 16439-35F15 |
Clamp |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 16439-V5000 |
Clamp-Hose A |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17012-WD100 |
Bracket-Fuel Pump |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17013-31U10 |
Bracket-Fuel Pump |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17014-31U10 |
Bracket-Fuel Pump |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17042-WE400 |
Pump Assy-Fuel |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17202-WA502 |
Tank Assy-Fuel |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17221-WA500 |
Tube Assy-Filler |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17227-WA605 |
Hose-Ventilation |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17228-WA605 |
Hose-Filler |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-61R15 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-67R13 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WA005 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WA010 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WA015 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WA020 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WE805 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WE806 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WE808 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WE809 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WE818 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17243-WE819 |
Shim-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17251-79922 |
Cap Assy-Filler |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17270-WE405 |
Tube Assy-Fuel Tank Outlet |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17285-WD114 |
Protector-Fuel Tank |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17331-WA600 |
Tube-Fuel Tank Evaporation |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17335-F9903 |
Hose-Evaporation |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17337-WA605 |
Hose-Evaporation |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17406-WA500 |
Band Assy-Fuel Tank Mounting |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17407-WA500 |
Band Assy-Fuel Tank, Mounting |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17551-WE400 |
Hose-Fuel |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17551-WE405 |
Hose-Fuel |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17551-WE415 |
Hose-Fuel |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 17574-WA000 |
Clip |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 25060-WA605 |
Sender Unit-Fuel Gauge |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
| 25060-WA905 |
Sender Unit-Fuel Gauge |
Fuel tank (2002-08-01 ~ ; QR20DE.AT.F4) |
