Search › Model › W11
W11

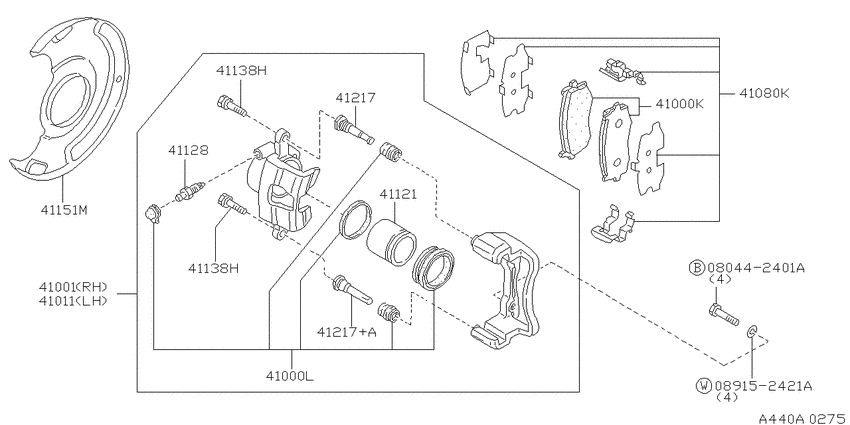

Front brake (2002-08-01 ~ ; ヒョウジュン; QG18DE +QR20DE.MCVT) 5
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-WA202 | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41011 | 41011-WA202 | Caliper Assy-Front Lh, W/o Pads Or Shims |
| 41080 | 41080-4L025 | Hardware Kit-Front Disc Brake Pad |
| 41138 | 44141-N9500 | Pin-Bolt |
| 41217 | 44139-2Y000 | Pin-Slide |
| OEM | Part name | Category |
|---|---|---|
| 41001-WA202 | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (2002-08-01 ~ ; ヒョウジュン; QG18DE +QR20DE.MCVT) |
| 41011-WA202 | Caliper Assy-Front Lh, W/o Pads Or Shims | Front brake (2002-08-01 ~ ; ヒョウジュン; QG18DE +QR20DE.MCVT) |
| 41080-4L025 | Hardware Kit-Front Disc Brake Pad | Front brake (2002-08-01 ~ ; ヒョウジュン; QG18DE +QR20DE.MCVT) |
| 44139-2Y000 | Pin-Slide | Front brake (2002-08-01 ~ ; ヒョウジュン; QG18DE +QR20DE.MCVT) |
| 44141-N9500 | Pin-Bolt | Front brake (2002-08-01 ~ ; ヒョウジュン; QG18DE +QR20DE.MCVT) |
