Search › Model › W11
W11

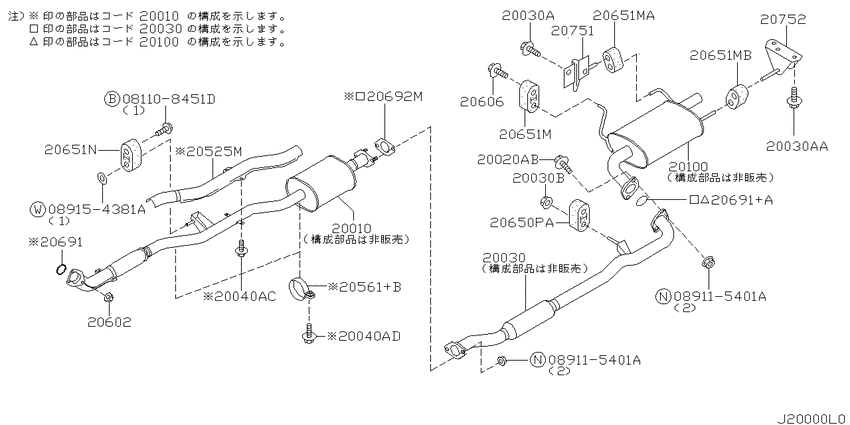

Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) 9
| # | OEM | Part name |
|---|---|---|
| 20010 | 20010-WA926 | Tube Assy-Exhaust, Front |
| 20030 | 20030-WA925 | Tube Assy-Exhaust, Center |
| 20525 | 20525-WA905 | Insulator-Heat, Front Tube Upper |
| 20561 | 20561-0E900 | Clamp-Insulator |
| 20602 | 20602-41G00 | Nut-Fix, Exhaust Tube |
| 20606 | 20606-50A00 | Bolt |
| 20650 | 20650-30P00 | Mounting Assy-Exhaust, Rubber |
| 20651 | 20651-50A01 | Mounting-Exhaust, Rubber |
| 20752 | 20752-WA201 | Bracket-Exhaust Mounting |
| OEM | Part name | Category |
|---|---|---|
| 20010-WA926 | Tube Assy-Exhaust, Front | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20030-WA925 | Tube Assy-Exhaust, Center | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20525-WA905 | Insulator-Heat, Front Tube Upper | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20561-0E900 | Clamp-Insulator | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20602-41G00 | Nut-Fix, Exhaust Tube | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20606-50A00 | Bolt | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20650-30P00 | Mounting Assy-Exhaust, Rubber | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20651-50A01 | Mounting-Exhaust, Rubber | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
| 20752-WA201 | Bracket-Exhaust Mounting | Exhaust tube & muffler (2002-08-01 ~ ; QR20DE.MCVT) |
