W11

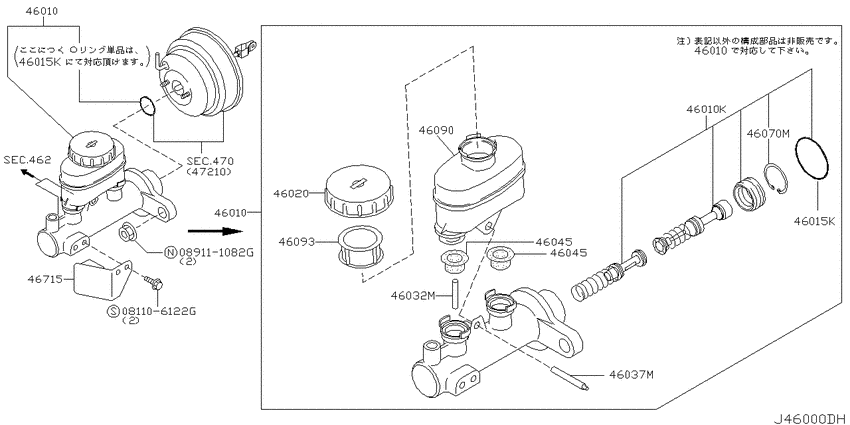

Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) 8
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-WA926 | Cylinder Assy-Brake Master |
| 46010 | 46011-WA926 | Piston Kit-Tandem Brake Master Cylinder |
| 46015 | 46096-2U026 | Seal Kit-O Ring |
| 46037 | 46037-AD000 | Pin-Spring |
| 46070 | 46070-2U000 | Stop Ring-Piston |
| 46090 | 46094-2U000 | Tank-Oil Reservoir |
| 46715 | 46027-WA900 | Bracket-Brake Master Cylinder |
| 81106122 | 08110-6122G | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08110-6122G | Bolt-hexagon | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
| 46010-WA926 | Cylinder Assy-Brake Master | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
| 46011-WA926 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
| 46027-WA900 | Bracket-Brake Master Cylinder | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
| 46037-AD000 | Pin-Spring | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
| 46070-2U000 | Stop Ring-Piston | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
| 46094-2U000 | Tank-Oil Reservoir | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
| 46096-2U026 | Seal Kit-O Ring | Brake master cylinder (2002-08-01 ~ ; TOKICO; QR20DE.MCVT) |
