Search › Model › VZV31

VZV31

Toyota CAMRY-VISTA-AURION · 1990 · 6,387 parts · 215 categories

6,387 items

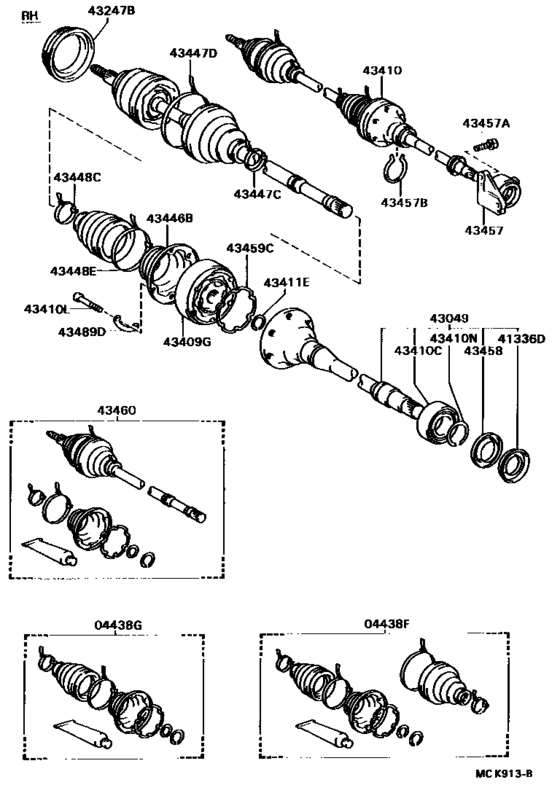

Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F) 41

#	OEM	Part name
4438	04437-17040	Boot Kit, Rear Drive Shaft
4438	04437-17030	Boot Kit, Rear Drive Shaft Inboard Joint
4438	04438-33012	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-12020	Cover, Dust(For Front Drive Shaft)
43049	43049-32030	Shaft Sub-Assy, Front Drive Flange
43247	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43247	43247-32011	Deflector, Front Wheel Bearing Dust, No.2
43247	43247-33010	Deflector, Front Wheel Bearing Dust, No.2
43409	43409-17010	Joint Sub-Assy, Front Drive Shaft Cross Groove
43410	43410-32210	Shaft Assy, Front Drive, Rh
43410	43410-32213	Shaft Assy, Front Drive, Rh
43410	43525-20030	Cap, Front Wheel Adjusting Lock
43410	90179-22020	Nut (For Rear Axle Shaft)
43410	43410-32211	Shaft Assy, Front Drive, Rh
43410	43410-32220	Shaft Assy, Front Drive, Rh
43410	43410-32223	Shaft Assy, Front Drive, Rh
43410	43410-32221	Shaft Assy, Front Drive, Rh
43410	90369-41001	Bearing(For Rear Drive Shaft)
43410	90363-41003	Bearing (For Front Drive Shaft)
43410	90110-10007	Bolt (For Propeller Shaft)
43410	90110-10015	Bolt(For Rear Drive Shaft)
43410	90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)
43411	90520-26028	Ring, Snap (For Rear Drive Shaft)
43446	43446-17010	Cover, Rear Axle Inboard Joint
43447	42345-14010	Clamp, Rear Drive Shaft Boot
43447	90949-01339	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	90949-01340	Clamp (For Rear Drive Shaft Inboard Joint Boot)
43457	43457-32040	Bracket, Drive Shaft Bearing
43457	90105-10202	Bolt (For Front Differential Carrier Cover Setting)
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43457	90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90521-78002	Ring, Hole Snap(For Rear Drive Shaft)
43458	43458-12010	Cover, Front Drive Shaft Dust
43459	43459-17010	Gasket, Rear Axle Inboard Joint End Cover
43460	43470-19165	Joint Assy, Rear Drive Shaft Outboard
43460	43470-19167	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19166	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-39165	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-39167	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-39166	Shaft Assy, Front Drive Outboard Joint, Rh
43489	43489-17010	Washer, Rear Drive Shaft Cross Groove Joint

OEM	Part name	Category
04437-17030	Boot Kit, Rear Drive Shaft Inboard Joint	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
04437-17040	Boot Kit, Rear Drive Shaft	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
04438-33012	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
41336-12020	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43049-32030	Shaft Sub-Assy, Front Drive Flange	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43247-32011	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43247-33010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43409-17010	Joint Sub-Assy, Front Drive Shaft Cross Groove	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43410-32210	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43410-32211	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43410-32213	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43410-32220	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43410-32221	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43410-32223	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43446-17010	Cover, Rear Axle Inboard Joint	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43457-32040	Bracket, Drive Shaft Bearing	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43458-12010	Cover, Front Drive Shaft Dust	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43459-17010	Gasket, Rear Axle Inboard Joint End Cover	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43470-19165	Joint Assy, Rear Drive Shaft Outboard	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43470-19166	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43470-19167	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43470-39165	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43470-39166	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43470-39167	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43489-17010	Washer, Rear Drive Shaft Cross Groove Joint	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
43525-20030	Cap, Front Wheel Adjusting Lock	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90105-10202	Bolt (For Front Differential Carrier Cover Setting)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90110-10007	Bolt (For Propeller Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90110-10015	Bolt(For Rear Drive Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90179-22020	Nut (For Rear Axle Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90363-41003	Bearing (For Front Drive Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90369-41001	Bearing(For Rear Drive Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90520-26028	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90521-78002	Ring, Hole Snap(For Rear Drive Shaft)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90949-01339	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
90949-01340	Clamp (For Rear Drive Shaft Inboard Joint Boot)	Front Drive Shaft ([07.1990 - ] RH (9007- )VZV30,31..5F)
