Search › Model › VZV21

VZV21

Toyota CAMRY-VISTA-AURION · 1988 · 6,781 parts · 300 categories

6,781 items

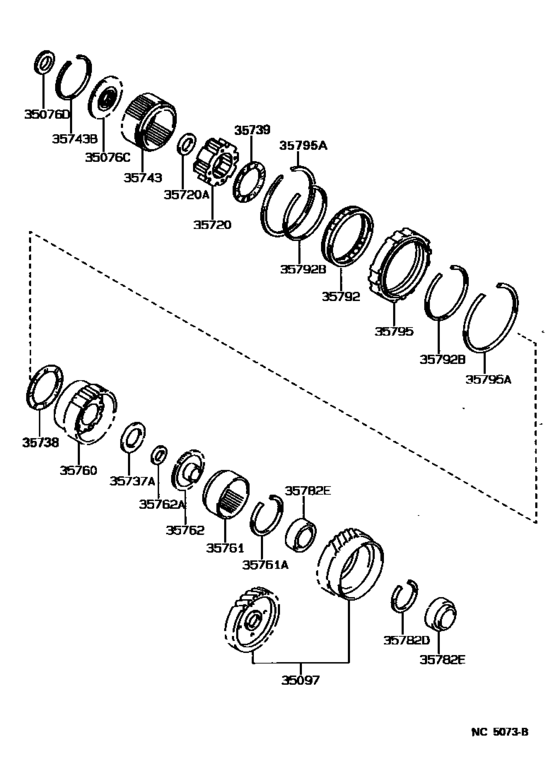

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC) 28

#	OEM	Part name
35076	35076-32020	Flange Sub-Assy, Front Planetary Ring Gear
35076	90374-31001	Bearing, Thrust Needle Roller(For Front Planetary Flange)
35097	35097-32020	Counter Gear Kit, Automatic Transaxle
35720	35720-32020	Gear Assy, Front Planetary
35720	35720-33010	Gear Assy, Front Planetary
35720	90374-30008	Bearing, Thrust Needle Roller (For Planetary Sun Gear)
35720	90374-30014	Bearing, Thrust Needle Roller (For Planetary Sun Gear)
35737	35738-32030	Washer, Planetary Carrier Thrust, No.1
35738	35738-32020	Washer, Planetary Carrier Thrust, No.1
35739	35739-32020	Washer, Planetary Carrier Thrust, No.3
35743	35743-32030	Gear, Front Planetary Ring
35743	90521-99014	Ring, Hole Snap (For Front Planetary Ring Gear Flange)
35743	35743-33010	Gear, Front Planetary Ring
35760	35760-32020	Gear Assy, Rear Planetary
35760	35738-33010	Washer, Planetary Carrier Thrust, No.1
35760	35760-33010	Gear Assy, Rear Planetary
35761	35761-32020	Gear, Rear Planetary Ring
35761	90521-90001	Ring, Hole Snap (For Rear Planetary Ring Gear Flange)
35762	35762-32021	Flange, Rear Planetary Ring Gear
35762	90374-22002	Bearing, Thrust Needle Roller (For Rear Planetary Flange)
35782	90521-67001	Ring, Hole Snap(For Counter Drive Gear)
35782	90368-40004	Bearing(For Counter Drive Gear)
35782	90366-40077	Bearing(For Counter Drive Gear)
35792	35792-20020	Clutch, 1 Way, No.2
35792	90521-99010	Ring, Hole Snap (For 1 Way Clutch No.2)
35792	35792-32020	Clutch, 1 Way, No.2
35795	35795-32010	Race, 1 Way Clutch Outer
35795	90521-99011	Ring, Hole Snap (For Overdrive Brake Flange)

OEM	Part name	Category
35076-32020	Flange Sub-Assy, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35097-32020	Counter Gear Kit, Automatic Transaxle	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35720-32020	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35720-33010	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35738-32020	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35738-32030	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35738-33010	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35739-32020	Washer, Planetary Carrier Thrust, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35743-32030	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35743-33010	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35760-32020	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35760-33010	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35761-32020	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35762-32021	Flange, Rear Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35792-20020	Clutch, 1 Way, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35792-32020	Clutch, 1 Way, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
35795-32010	Race, 1 Way Clutch Outer	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90366-40077	Bearing(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90368-40004	Bearing(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90374-22002	Bearing, Thrust Needle Roller (For Rear Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90374-30008	Bearing, Thrust Needle Roller (For Planetary Sun Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90374-30014	Bearing, Thrust Needle Roller (For Planetary Sun Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90374-31001	Bearing, Thrust Needle Roller(For Front Planetary Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90521-67001	Ring, Hole Snap(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90521-90001	Ring, Hole Snap (For Rear Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90521-99010	Ring, Hole Snap (For 1 Way Clutch No.2)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90521-99011	Ring, Hole Snap (For Overdrive Brake Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
90521-99014	Ring, Hole Snap (For Front Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )VZV21..4FC)
