Search › Model › VZV21
VZV21

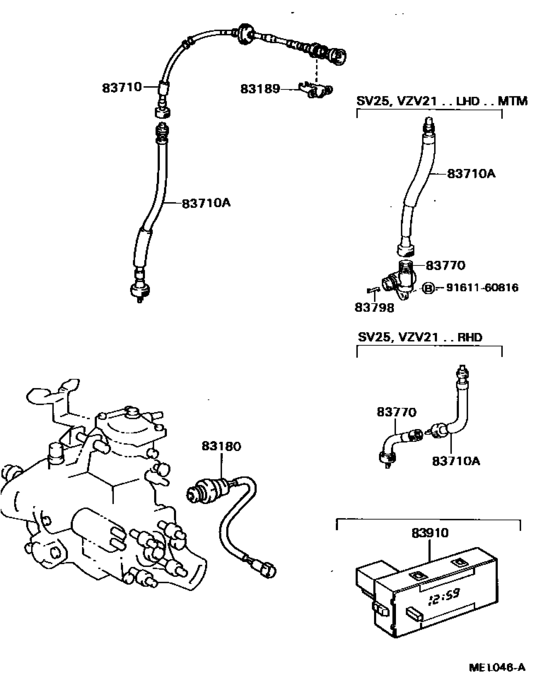

Meter ([08.1988 - ] (8808- )) 6
| # | OEM | Part name |
|---|---|---|
| 83189 | 83189-20020 | Bracket, Meter |
| 83710 | 83710-32270 | Cable Assy, Speedometer Drive, No.1 |
| 83710 | 83710-32200 | Cable Assy, Speedometer Drive, No.1 |
| 83910 | 83910-32061 | Clock Assy |
| 9161160816 | 91611-60816 | Screw Or Bolt(For Valve Rocker Shaft Lock) |
| 9161160816 | 91611-B0816 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 83189-20020 | Bracket, Meter | Meter ([08.1988 - ] (8808- )) |
| 83710-32200 | Cable Assy, Speedometer Drive, No.1 | Meter ([08.1988 - ] (8808- )) |
| 83710-32270 | Cable Assy, Speedometer Drive, No.1 | Meter ([08.1988 - ] (8808- )) |
| 83910-32061 | Clock Assy | Meter ([08.1988 - ] (8808- )) |
| 91611-60816 | Screw Or Bolt(For Valve Rocker Shaft Lock) | Meter ([08.1988 - ] (8808- )) |
| 91611-B0816 | Bolt | Meter ([08.1988 - ] (8808- )) |
