VZV21

Toyota CAMRY-VISTA-AURION · 1988 · 6,781 parts · 300 categories
VZV21 ×

← Back to categories

6,781 items

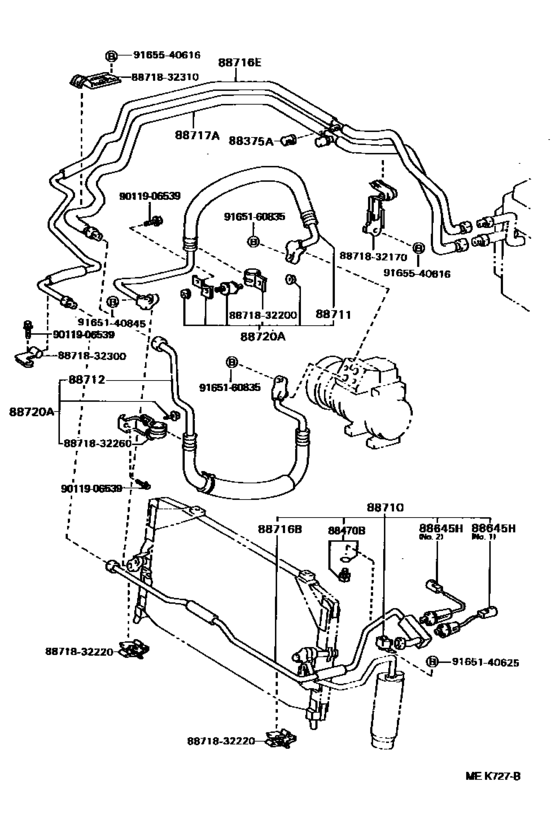

Heating & Air Conditioning - Cooler Piping ([08.1988 - ] (8808- )VZV21..LHD) 26
#OEMPart name
88375 88375-20010 Cap, Service Valve (For Cooler Pipe)
88470 88475-12020 Bolt, Fuse
88645 88645-32040 Switch, Pressure No.1
88645 88645-32050 Switch, Pressure No.1
88710 88710-32080 Tube Assy, Air Conditioner - AIRCONDITIONER
88711 88711-32080 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-32160 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-32162 Hose, Cooler Refrigerant Suction, No.1
88712 88712-32340 Hose, Cooler Refrigerant Suction, No.1
88716 88716-32350 Pipe, Cooler Refrigerant Liquid, B
88716 88716-32330 Pipe, Cooler Refrigerant Liquid, E
88717 88717-32231 Pipe, Cooler Refrigerant Suction, A
88720 88720-32040 Hose & Accessory, Air Conditioner
88720 88720-32062 Hose & Accessory, Air Conditioner - AIRCONDITIONER
8871832170 88718-32170 Pipe, Cooler Refrigerant Suction, No.2
8871832200 88718-32200 Pipe, Cooler Refrigerant Suction, No.2
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
8871832260 88718-32260 Pipe, Cooler Refrigerant Suction, No.2
8871832300 88718-32300 Pipe, Cooler Refrigerant Suction, No.2
8871832310 88718-32310 Pipe, Cooler Refrigerant Suction, No.2
9011906539 90119-06539 New Genuine Part
9165140625 91651-40625 New Genuine Part
9165140845 91651-40845 New Genuine Part
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
