VZV21

Toyota CAMRY-VISTA-AURION · 1988 · 6,781 parts · 300 categories
VZV21 ×

← Back to categories

6,781 items

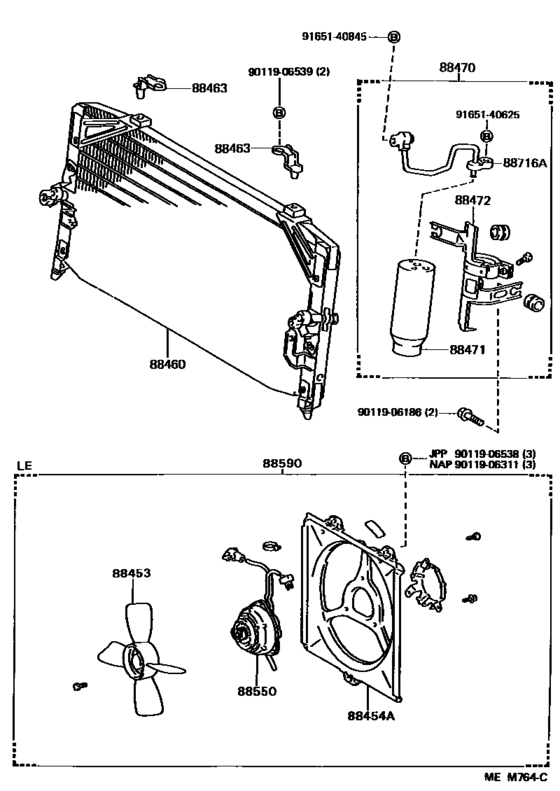

Heating & Air Conditioning - Cooler Piping ([08.1988 - ] (8808- )VZV21) 47
#OEMPart name
88375 88375-03010 Cap, Service Valve (For Cooler Pipe)
88453 88453-03020 Fan, No.2
88454 88454-03020 Shroud, Fan, No.2
88460 88460-03010 Condenser Assy, Cooler
88463 88463-03010 Bracket, Cooler Condenser, No.1
88470 88470-03010 Receiver & Dryer Assy, Cooler
88470 88475-03010 Bolt, Fuse
88471 88471-03010 Tank, Receiver Air Conditioner
88472 88473-03010 Bracket, Receiver Tank, No.1
88550 88550-03020 Motor Assy, Blower (For Condenser)
88590 88590-03020 Blower Assy, W/shroud
88645 88645-03010 Switch, Pressure No.1
88645 88645-03020 Switch, Pressure No.1
88710 88710-03010 Tube Assy, Air Conditioner
88711 88711-03020 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-03020 Hose, Cooler Refrigerant Suction, No.1
88716 88716-03010 Pipe, Cooler Refrigerant Liquid, A
88716 88716-03030 Pipe, Cooler Refrigerant Liquid, B
88716 88716-03040 Pipe, Cooler Refrigerant Liquid, E
88717 88717-03011 Pipe, Cooler Refrigerant Suction, A
88720 88720-03010 Hose & Accessory, Air Conditioner
88720 88720-03020 Hose & Accessory, Air Conditioner
8871803010 88718-03010 Pipe, Cooler Refrigerant Suction, No.2
8871803020 88718-03020 Pipe, Cooler Refrigerant Suction, No.2
8871803030 88718-03030 Pipe, Cooler Refrigerant Suction, No.2
8871803040 88718-03040 Pipe, Cooler Refrigerant Suction, No.2
8871803050 88718-03050 Pipe, Cooler Refrigerant Suction, No.2
8871803060 88718-03060 Pipe, Cooler Refrigerant Suction, No.2
8871832170 88718-32170 Pipe, Cooler Refrigerant Suction, No.2
8871832180 88718-32180 Pipe, Cooler Refrigerant Suction, No.2
8871832200 88718-32200 Pipe, Cooler Refrigerant Suction, No.2
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
8871832260 88718-32260 Pipe, Cooler Refrigerant Suction, No.2
8871832300 88718-32300 Pipe, Cooler Refrigerant Suction, No.2
8871832310 88718-32310 Pipe, Cooler Refrigerant Suction, No.2
8871832333 88718-32333 Pipe, Cooler Refrigerant Suction, No.2
9011906186 90119-06186 BOLT
9011906186 90119-06420 BOLT WWASHER
9011906311 90119-06311 BOLT
9011906538 90119-06538 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9011906538 91611-G0612 Bolt
9011906539 90119-06539 New Genuine Part
9165140625 91651-40625 New Genuine Part
9165140835 91651-40835 New Genuine Part
9165140845 91651-40845 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
