Search › Model › VZV21

VZV21

Toyota CAMRY-VISTA-AURION · 1988 · 6,781 parts · 300 categories

6,781 items

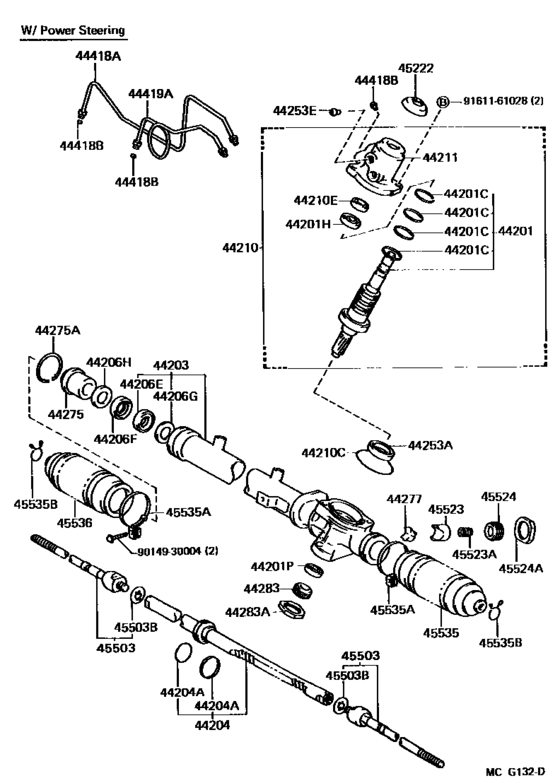

Front Steering Gear & Link ([08.1988 - ] (8808- )LHD) 57

#	OEM	Part name
44201	44201-32040	Valve Sub-Assy, Power Steering Control
44201	90562-33002	Ring(For Power Steering Control Valve)
44201	90363-19002	Bearing(For Power Steering Control Valve)
44201	90363-13002	Bearing(For Power Steering Control Valve Lower)
44203	44203-32062	Housing Sub-Assy, Power Steering Rack
44203	44203-32065	Housing Sub-assy, Power Steering Rack
44203	45514-32092	Bracket, Steering Rack Housing, No.1
44203	45517-32050	Grommet, Steering Rack Housing, No.2
44203	45516-32040	Grommet, Steering Rack Housing, No.1
44203	45517-32060	Grommet, Steering Rack Housing, No.2
44203	44277-20040	Seat, Rack Guide
44203	45523-20040	Guide, Rack(For Steering Gear)
44203	45524-20030	Cap, Rack Housing
44203	44203-32064	Housing Sub-Assy, Power Steering Rack
44204	44204-20100	Rack Sub-Assy, Power Steering
44204	90301-36004	Ring(For Rack Steering Piston)
44204	90562-40002	Ring(For Rack Steering Piston)
44204	90560-40008	Ring(For Rack Steering Piston)
44206	90310-25013	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90310-25011	Seal, Oil, No.2(For Power Steering Cylinder Tube)
44206	90560-26009	Spacer, No.1(For Power Steering Cylinder Tube)
44206	90560-26008	Spacer, No.2(For Power Steering Cylinder Tube)
44210	44210-32060	Valve Assy, Power Steering Control
44210	96711-24060	Ring, O(For Power Steering Control Valve)
44210	90311-19006	Seal, Oil(For Power Steering Control Valve)
44211	44211-32040	Housing, Control Valve
44253	90310-28001	Seal, Oil(For Power Steering Control Valve)
44253	90310-28003	Seal, Oil(For Power Steering Rack Housing)
44253	90410-04006	Seat, Union(For Power Steering Control Valve)
44253	90410-06002	Seat, Union(For Power Steering Control Valve)
44275	44275-32011	Stopper, Cylinder End
44275	44275-32020	Stopper, Cylinder End
44275	90521-53002	Ring, Hole Snap(For Cylinder End Stopper)
44277	44277-24010	Seat, Rack Guide
44283	45524-16010	Cap(For Power Steering Pinion)
44283	90179-36002	Nut(For Power Steering Pinion Cap)
44418	44418-32060	Tube, Steering Right Turn Pressure
44418	90410-04003	Seat, Union(For Power Steering Control Valve)
44418	96390-71200	Seat, Union(For Steering Turn Pressure Tube)
44419	44419-32060	Tube, Steering Left Turn Pressure
45222	45222-32010	Cover, Dust(For Power Steering Gear)
45503	45503-39025	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45523	45523-24010	Guide, Rack(For Power Steering)
45523	45524-50010	Cap, Rack Housing
45523	90501-23007	Spring(For Power Steering Rack Guide)
45523	90501-29036	Spring(For Steering Gear Rack Guide)
45523	90501-23023	Spring(For Steering Gear Rack Guide)
45523	90501-29016	Spring(For Steering Gear Rack Guide)
45535	45535-20050	Boot, Steering Rack No.1(For Power Steering)
45535	90461-10709	Clamp(For Power Steering Rack Boot)
45535	90949-01082	Clamp(For Power Steering Rack Boot)
45535	90467-18003	Clip Or Clamp(For Ventilation Hose)
45536	45535-32030	Boot, Steering Rack No.2(For Power Steering)
9014930004	90149-30004	Screw(For Steering Rack Boot Clamp)
9161161028	91611-61028	Bolt(For Transaxle Case & Engine Setting)
9161161028	91612-61028	Bolt(For Transaxle Case & Engine Setting)

OEM	Part name	Category
44201-32040	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44203-32062	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44203-32064	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44203-32065	Housing Sub-assy, Power Steering Rack	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44204-20100	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44210-32060	Valve Assy, Power Steering Control	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44211-32040	Housing, Control Valve	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44275-32011	Stopper, Cylinder End	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44275-32020	Stopper, Cylinder End	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44277-20040	Seat, Rack Guide	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44277-24010	Seat, Rack Guide	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44418-32060	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
44419-32060	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45222-32010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45503-39025	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45514-32092	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45516-32040	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45517-32050	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45517-32060	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45523-20040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45523-24010	Guide, Rack(For Power Steering)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45524-16010	Cap(For Power Steering Pinion)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45524-20030	Cap, Rack Housing	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45524-50010	Cap, Rack Housing	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45535-20050	Boot, Steering Rack No.1(For Power Steering)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
45535-32030	Boot, Steering Rack No.2(For Power Steering)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90149-30004	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90301-36004	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90310-25011	Seal, Oil, No.2(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90310-25013	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90310-28001	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90310-28003	Seal, Oil(For Power Steering Rack Housing)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90311-19006	Seal, Oil(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90363-13002	Bearing(For Power Steering Control Valve Lower)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90363-19002	Bearing(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90410-04003	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90410-04006	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90410-06002	Seat, Union(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90461-10709	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90467-18003	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90501-23007	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90501-23023	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90501-29016	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90501-29036	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90521-53002	Ring, Hole Snap(For Cylinder End Stopper)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90560-26008	Spacer, No.2(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90560-26009	Spacer, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90560-40008	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90562-33002	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90562-40002	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
90949-01082	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
91611-61028	Bolt(For Transaxle Case & Engine Setting)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
96390-71200	Seat, Union(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
96711-24060	Ring, O(For Power Steering Control Valve)	Front Steering Gear & Link ([08.1988 - ] (8808- )LHD)
