Search › Model › VZV21

VZV21

Toyota CAMRY-VISTA-AURION · 1988 · 6,781 parts · 300 categories
VZV21 ×

← Back to categories

6,781 items

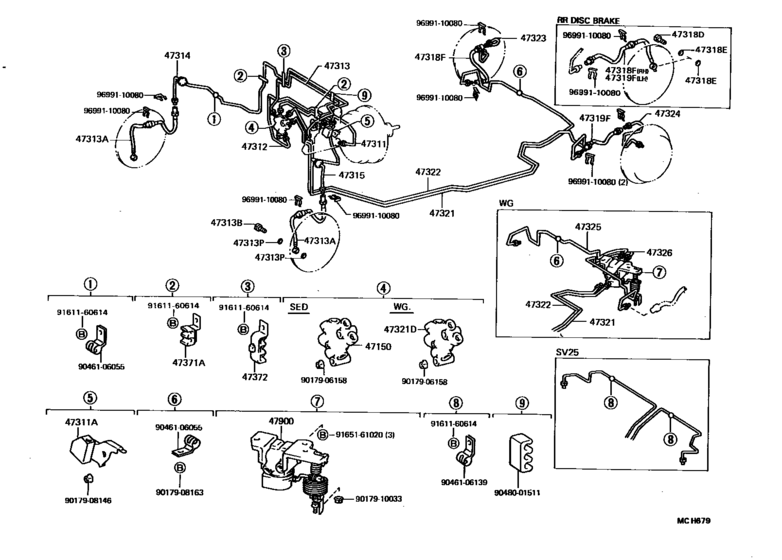

Brake Tube & Clamp ([08.1988 - ] (8808- )LHD) 37
#OEMPart name
47311 47311-32060 Tube, Front Brake, No.1
47311 90412-10147 Way(For Front Brake Tube)
47311 90413-10165 Way(For Front Brake Tube)
47312 47312-32101 Tube, Front Brake, No.2
47313 47313-32090 Tube, Front Brake, No.3
47313 90947-02496 Hose, Flexible, No.1(For Front)
47313 90947-02987 Hose, Flexible, No.1(For Front)
47313 90947-02540 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-32091 Tube, Front Brake, No.4
47315 47315-32070 Tube, Front Brake, No.5
47315 47315-32100 Tube, Front Brake, No.5
47318 90947-02498 Hose, Flexible(For Rear Rh)
47321 47321-32060 Tube, Rear Brake, No.1
47321 90413-10205 Valve Assy, Proportioning
47322 47322-32050 Tube, Rear Brake, No.2
47323 47323-32070 Tube, Rear Brake, No.3
47324 47324-32070 Tube, Rear Brake, No.4
47325 47325-32030 Tube, Rear Brake, No.5
47326 47326-32010 Tube, Rear Brake, No.6
47371 47371-30010 Clamp, Brake Tube, No.1
47372 47371-30030 Clamp, Brake Tube, No.3
47900 47900-32030 Valve Assy, Load Sensing W/spring
47900 47900-32040 Valve Assy, Load Sensing W/spring
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9017908163 90179-08163 Nut (For Front Wiper Arm Setting)
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9046106055 90461-06055 Clamp, Brake Tube, No.1
9046106139 90461-06139 New Genuine Part
9048001511 90480-01511 New Genuine Part
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9699110080 96991-10080 CLIP
