VZN66

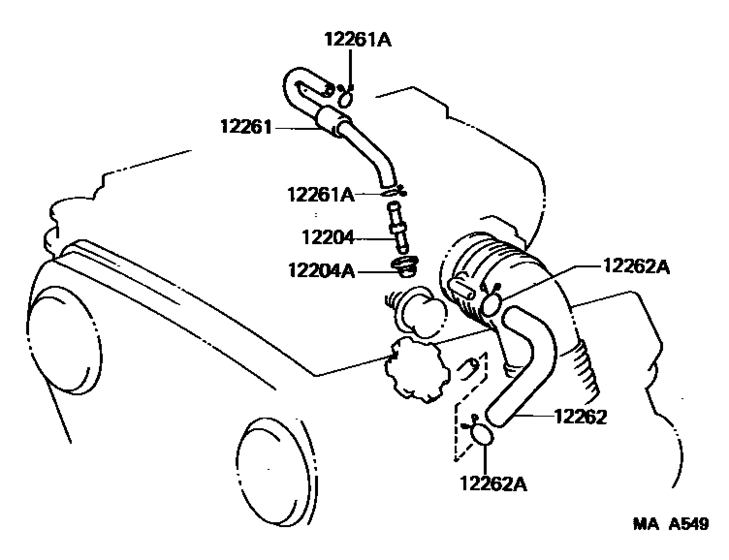

Ventilation Hose ([11.1987 - ] (8711- )3VZE) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-35040 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12261-65010 | Hose, Ventilation |
| 12261 | 90467-15006 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-65010 | Hose, Ventilation, No.2 |
| 12262 | 90467-19122 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-35040 | Valve Sub-Assy, Ventilation | Ventilation Hose ([11.1987 - ] (8711- )3VZE) |
| 12261-65010 | Hose, Ventilation | Ventilation Hose ([11.1987 - ] (8711- )3VZE) |
| 12262-65010 | Hose, Ventilation, No.2 | Ventilation Hose ([11.1987 - ] (8711- )3VZE) |
| 90467-15006 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.1987 - ] (8711- )3VZE) |
| 90467-19122 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([11.1987 - ] (8711- )3VZE) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([11.1987 - ] (8711- )3VZE) |
