Search › Model › VZN66

VZN66

Toyota HILUX-4RUNNER-TRUCK · 1987 · 4,549 parts · 171 categories

4,549 items

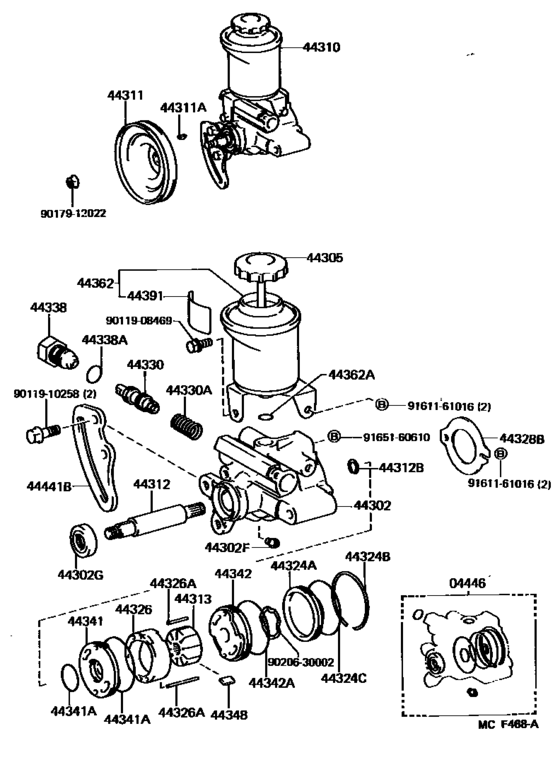

Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#) 74

#	OEM	Part name
4446	04446-35040	Gasket Kit, Power Steering Pump
4446	04446-20120	Gasket Kit, Power Steering Pump
44302	44302-35010	Housing Sub-Assy, Vane Pump, Front
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-12010	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	44320-35220	Pump Assy, Vane
44310	44320-35361	Pump Assy, Vane
44310	44320-35221	Pump Assy, Vane
44310	44320-35360	Pump Assy, Vane
44311	44311-35020	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-12010	Rotor, Vane Pump
44313	44313-22040	Rotor, Vane Pump
44313	44313-12020	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-12030	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-12040	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-12050	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44324	44325-30100	Ring, Cam(For Vane Pump)
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-52001	Ring, O(For Pump Housing Rear)
44326	44325-30110	Ring, Cam(For Vane Pump)
44326	44325-30120	Ring, Cam(For Vane Pump)
44326	44325-30130	Ring, Cam(For Vane Pump)
44326	44325-30140	Ring, Cam(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44328	44328-35010	End, Vane Pump Housing
44330	44330-35070	Valve Assy, Flow Control
44330	44330-35191	Valve Assy, Flow Control
44330	44330-35080	Valve Assy, Flow Control
44330	44330-35201	Valve Assy, Flow Control
44330	44330-35090	Valve Assy, Flow Control
44330	44330-35211	Valve Assy, Flow Control
44330	44330-35100	Valve Assy, Flow Control
44330	44330-35221	Valve Assy, Flow Control
44330	44330-35110	Valve Assy, Flow Control
44330	44330-35231	Valve Assy, Flow Control
44330	44330-35120	Valve Assy, Flow Control
44330	44330-35241	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44338	44308-35050	Union Sub-Assy, Pressure Port
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-12030	Plate, Vane Pump Side, Front
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	44342-12021	Plate, Vane Pump Side, Rear
44342	44342-32010	Plate, Vane Pump Side, Rear
44348	44345-12010	Plate, Vane Pump
44348	44345-12020	Plate, Vane Pump
44348	44345-12030	Plate, Vane Pump
44348	44345-12040	Plate, Vane Pump
44348	44345-12050	Plate, Vane Pump
44362	44306-35100	Reservoir Assy, Vane Pump Oil
44362	90301-12003	Ring, O(For Power Steering Suction Port)
44362	90301-11016	Ring, O(For Power Steering Suction Port)
44441	44441-35030	Bracket, Pump, Front
9011908469	90119-08469	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9011910258	90119-10258	New Genuine Part
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9161161016	91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER

OEM	Part name	Category
04446-20120	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
04446-35040	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44302-35010	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44305-12010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44306-35100	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44308-35050	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44311-35020	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-12010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-12020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-12030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-12040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-12050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44320-35220	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44320-35221	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44320-35360	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44320-35361	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44325-30100	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44325-30110	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44325-30120	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44325-30130	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44325-30140	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44328-35010	End, Vane Pump Housing	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35070	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35080	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35100	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35110	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35120	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35191	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35201	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35211	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35221	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35231	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44330-35241	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44341-12030	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44342-12021	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
44441-35030	Bracket, Pump, Front	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90119-08469	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90119-10258	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
91651-60610	BOLT	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
91651-B0610	BOLTWWASHER	Vane Pump & Reservoir (Power Steering) ([11.1987 - ] (8711- )VZN6#)
