VZN66

Toyota HILUX-4RUNNER-TRUCK · 1987 · 4,549 parts · 171 categories

4,549 items

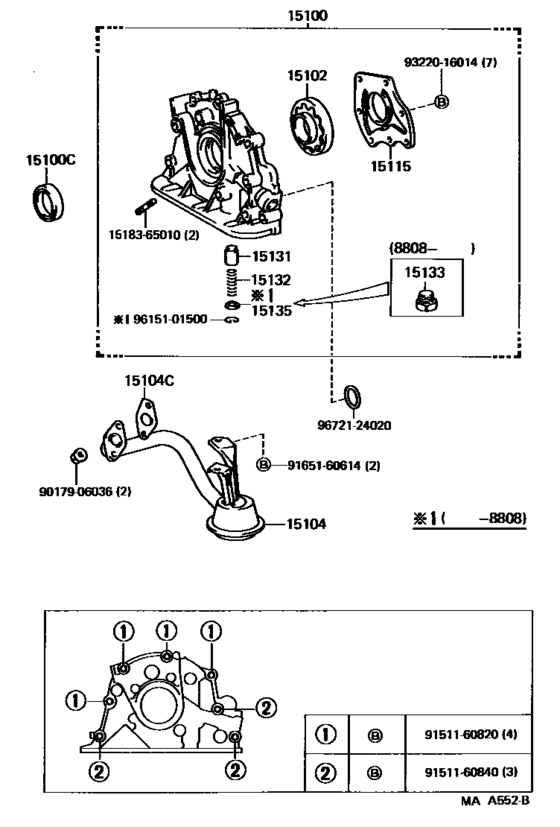

Engine Oil Pump ([11.1987 - ] (8711- )3VZE) 25

#	OEM	Part name
15100	15100-65010	Pump Assy, Oil
15100	15100-65020	Pump Assy, Oil
15100	11328-65011	Gasket, Timing Belt Cover, No.1
15100	15100-65011	Pump Assy, Oil
15100	90311-40006	Seal(For Oil Pump)
15100	90311-40022	Oil Seal (For Oil Pump)
15102	15103-65010	Rotor Set, Oil Pump
15104	15104-65010	Strainer Sub-Assy, Oil
15104	15147-62010	Gasket(For Oil Strainer)
15104	15147-62020	Gasket(For Oil Strainer)
15115	15115-65010	Cover, Oil Pump
15131	15131-24010	Valve, Oil Pump Relief
15132	15132-62010	Spring, Oil Pump Relief Valve
15135	15135-15010	Retainer, Oil Pump Relief Valve
1518365010	15183-65010	Bolt, Union(for Oil Pump)
9017906036	90179-06036	Nut, Cap(For Cylinder Head Cover)
9017906036	90179-06299	Nut, Wire Adjusting, No.1
9151160820	91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160820	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9151160840	91511-60840	Bolt(For Alternator)
9151160840	91511-J0840	Bolt(For Alternator)
9165160614	91651-60614	Bolt
9322016014	93220-16014	SCREW
9615101500	96151-01500	Ring, Hole Snap (For Pressure Regulator Valve Set)
9672124020	96721-24020	O-Ring

OEM	Part name	Category
11328-65011	Gasket, Timing Belt Cover, No.1	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15100-65010	Pump Assy, Oil	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15100-65011	Pump Assy, Oil	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15100-65020	Pump Assy, Oil	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15103-65010	Rotor Set, Oil Pump	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15104-65010	Strainer Sub-Assy, Oil	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15115-65010	Cover, Oil Pump	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15131-24010	Valve, Oil Pump Relief	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15132-62010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15135-15010	Retainer, Oil Pump Relief Valve	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15147-62010	Gasket(For Oil Strainer)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15147-62020	Gasket(For Oil Strainer)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
15183-65010	Bolt, Union(for Oil Pump)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
90179-06036	Nut, Cap(For Cylinder Head Cover)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
90179-06299	Nut, Wire Adjusting, No.1	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
90311-40006	Seal(For Oil Pump)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
90311-40022	Oil Seal (For Oil Pump)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
91511-60820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
91511-60840	Bolt(For Alternator)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
91511-J0840	Bolt(For Alternator)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
91651-60614	Bolt	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
93220-16014	SCREW	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
96151-01500	Ring, Hole Snap (For Pressure Regulator Valve Set)	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
96721-24020	O-Ring	Engine Oil Pump ([11.1987 - ] (8711- )3VZE)
