Search › Model › VZN66

VZN66

Toyota HILUX-4RUNNER-TRUCK · 1987 · 4,549 parts · 171 categories

4,549 items

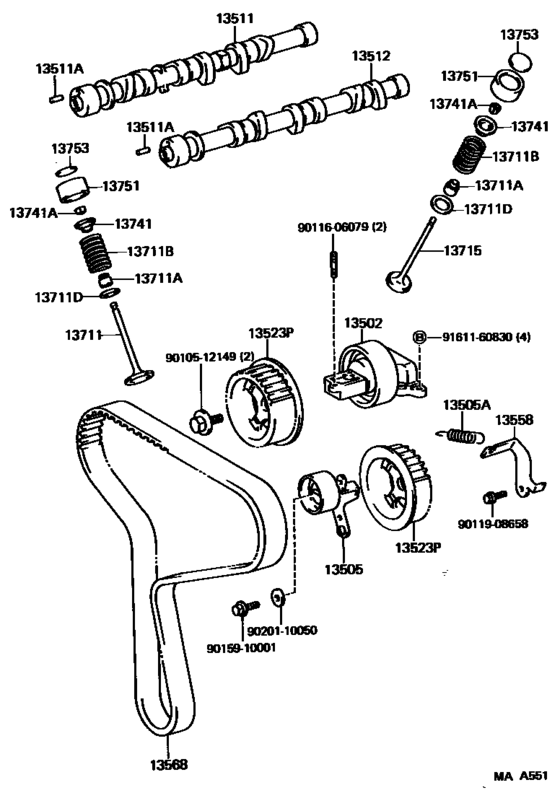

Camshaft & Valve ([11.1987 - ] (8711- )3VZE) 52

#	OEM	Part name
13502	13503-65010	Idler Sub-Assy, Timing Belt, No.2
13505	13505-65020	Idler Sub-Assy, Timing Belt, No.1
13505	90506-20058	Spring, Tension(For Idler)
13505	90507-21001	Spring, Tension(For Idler)
13511	13501-65010	Camshaft
13511	90250-05121	Pin, Straight, No.3(For Camshaft Knock)
13512	13502-65010	Camshaft, No.2
13523	13051-65010	Pulley, Camshaft Timing
13558	13558-65010	Bracket, Tension Spring
13568	13568-65010	Belt, Timing
13568	13568-69055	Belt, Timing
13711	13711-65010	Valve, Intake
13711	90913-02053	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02110	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-45031	Spring, Compression(For Inner)
13711	90504-41001	Spring, Compression(For Inner)
13711	90201-21002	Washer, Plate(For Valve Spring Seat)
13715	13715-65010	Valve, Exhaust
13741	13741-43010	Retainer, Valve Spring
13741	90913-03014	Lock, Valve Spring Retainer
13751	13751-64011	Lifter, Valve
13753	13753-64010	Shim, Valve Adjusting
13753	13753-64030	Shim, Valve Adjusting
13753	13753-64050	Shim, Valve Adjusting
13753	13753-64070	Shim, Valve Adjusting
13753	13753-64090	Shim, Valve Adjusting
13753	13753-64110	Shim, Valve Adjusting
13753	13753-64130	Shim, Valve Adjusting
13753	13753-64150	Shim, Valve Adjusting
13753	13753-64170	Shim, Valve Adjusting
13753	13753-64190	Shim, Valve Adjusting
13753	13753-64210	Shim, Valve Adjusting
13753	13753-64230	Shim, Valve Adjusting
13753	13753-64250	Shim, Valve Adjusting
13753	13753-64270	Shim, Valve Adjusting
13753	13753-64290	Shim, Valve Adjusting
13753	13753-64310	Shim, Valve Adjusting
13753	13753-64330	Shim, Valve Adjusting
13753	13753-64350	Shim, Valve Adjusting
13753	13753-64370	Shim, Valve Adjusting
13753	13753-64390	Shim, Valve Adjusting
13753	13753-64410	Shim, Valve Adjusting
13753	13753-64430	Shim, Valve Adjusting
13753	13753-64450	Shim, Valve Adjusting
13753	13753-64470	Shim, Valve Adjusting
13753	13753-64490	Shim, Valve Adjusting
9010512149	90105-12149	Bolt(For Camshaft Timing Gear)
9011606079	90116-06079	BOLT STUD
9011908658	90119-08658	New Genuine Part
9015910001	90159-10001	New Genuine Part
9020110050	90201-10050	Washer, Plate(For Cylinder Head Set)
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)

OEM	Part name	Category
13051-65010	Pulley, Camshaft Timing	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13501-65010	Camshaft	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13502-65010	Camshaft, No.2	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13503-65010	Idler Sub-Assy, Timing Belt, No.2	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13505-65020	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13558-65010	Bracket, Tension Spring	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13568-65010	Belt, Timing	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13568-69055	Belt, Timing	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13711-65010	Valve, Intake	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13715-65010	Valve, Exhaust	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13741-43010	Retainer, Valve Spring	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13751-64011	Lifter, Valve	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64010	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64030	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64050	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64070	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64090	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64110	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64130	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64150	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64170	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64190	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64210	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64230	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64250	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64270	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64290	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64310	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64330	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64350	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64370	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64390	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64410	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64430	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64450	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64470	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
13753-64490	Shim, Valve Adjusting	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90105-12149	Bolt(For Camshaft Timing Gear)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90116-06079	BOLT STUD	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90119-08658	New Genuine Part	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90159-10001	New Genuine Part	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90201-10050	Washer, Plate(For Cylinder Head Set)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90201-21002	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90250-05121	Pin, Straight, No.3(For Camshaft Knock)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90501-45031	Spring, Compression(For Inner)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90504-41001	Spring, Compression(For Inner)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90506-20058	Spring, Tension(For Idler)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90507-21001	Spring, Tension(For Idler)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90913-02053	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90913-02110	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
90913-03014	Lock, Valve Spring Retainer	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Camshaft & Valve ([11.1987 - ] (8711- )3VZE)
