| 33183-35032 |
Damper, Transfer Dynamic |

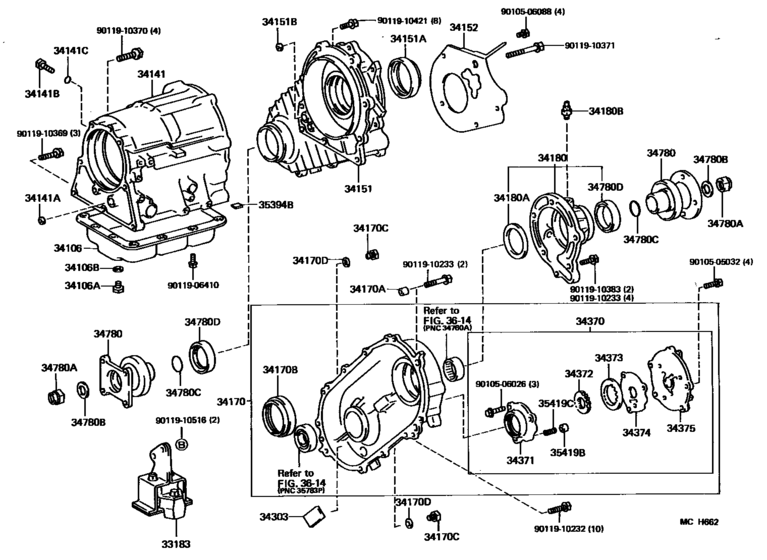

Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34106-35010 |
Pan Sub-Assy, Transfer Oil |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34151-35041 |
Case, Transfer Chain, Front |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34152-35020 |
Receiver, Transfer Chain Oil |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34170-35031 |
Case Assy, Transfer Chain, Rear |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34180-35010 |
Housing Assy, Transfer Extension |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34182-35011 |
Receiver, Extension Housing Oil |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34303-35010 |
Strainer Sub-Assy, Transfer Oil |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34370-35010 |
Pump Assy, Transfer Oil |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34371-35010 |
Body, Automatic Transfer Oil Pump |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34372-35010 |
Gear, Transfer Oil Pump Drive |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34373-35010 |
Gear, Transfer Oil Pump Driven |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34374-35010 |
Plate, Automatic Transfer Oil Pump |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34375-35010 |
Cover, Automatic Transfer Oil Pump |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34780-35020 |
Yoke Assy, Flange |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 34780-35030 |
Yoke Assy, Flange |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 35148-16010 |
Gasket (For Automatic Transfer Case) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 35178-30010 |
Drain Plug Gasket |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 35419-35010 |
Valve, Check |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90105-05032 |
New Genuine Part |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90105-06026 |
Bolt (For Transaxle Case Upper Cover) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90105-06088 |
New Genuine Part |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-06410 |
Bolt (For Automatic Transmission Oil Pan) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10232 |
Bolt (For Transmission Housing & Case Setting) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10233 |
New Genuine Part |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10369 |
New Genuine Part |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10370 |
New Genuine Part |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10371 |
New Genuine Part |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10383 |
New Genuine Part |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10421 |
Bolt (For Transmission Housing & Case Setting) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90119-10516 |
Bolt (For Control Shaft Cover) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90179-20001 |
Nut (For Manual Transmission Output Shaft Rear Set) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90201-20005 |
Washer, Plate (For Flange Yoke) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90250-13003 |
Pin, Straight (For Transfer Chain Case) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90301-06196 |
O Ring, Transaxle Case, No.1 |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90301-26190 |
Ring, O (For Flange Yoke) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90310-58001 |
Seal, Oil (For Transfer Chain Case) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90310-77001 |
Seal, Oil (For Transfer Chain Case) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90316-40001 |
Seal, Oil (For Flange Yoke) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90341-08001 |
Plug, Transaxle Case, No.1 |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90341-10006 |
Plug (For Transfer Oil Pan) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90341-10011 |
Drain Plug (No Type) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90341-18021 |
Plug, Filler(Hv) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90341-18049 |
Plug(For Oil Heater Houl) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90430-18008 |
Gasket |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90430-T0021 |
Gasket(For Manual Transmission Filler Plug) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90501-06015 |
Spring, Compression (For Check Valve) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 90930-03031 |
Plug, Breather(For Parking Cover) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 91511-H0620 |
Bolt (For Transaxle Case Upper Cover) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
| 91612-61025 |
Bolt (For Control Shaft Cover) |
Transfer Case & Extension Housing ([11.1987 - ] (8711- )VZN6#..4FC) |
