Search › Model › VZN61

VZN61

Toyota HILUX-4RUNNER-TRUCK · 1987 · 4,920 parts · 182 categories

4,920 items

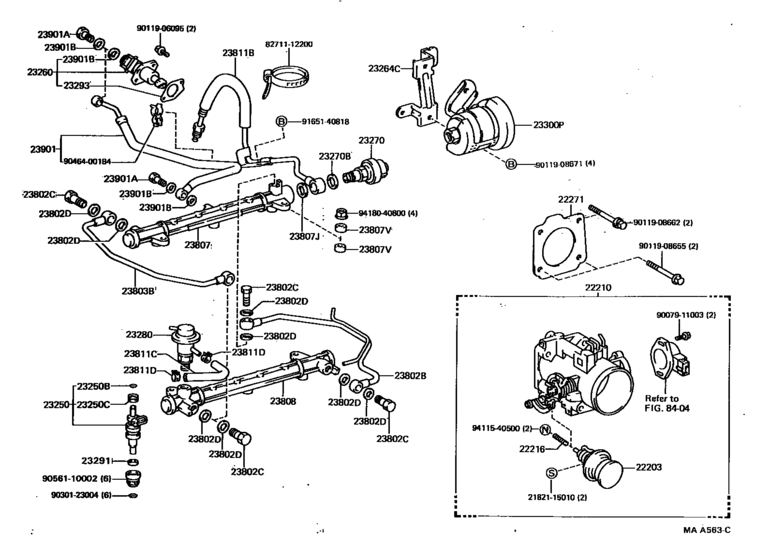

Fuel Injection System ([11.1987 - ] (8711- )3VZE) 78

#	OEM	Part name
22203	22202-65020	Dash Pot Sub-Assy(For Throttle Body)
22203	22202-65040	Dash Pot Sub-Assy(For Throttle Body)
22203	22202-65011	Dash Pot Sub-Assy(For Throttle Body)
22203	22202-65030	Dash Pot Sub-Assy(For Throttle Body)
22210	22210-65021	Body Assy, Throttle
22210	22210-65040	Body Assy, Throttle
22210	22210-65011	Body Assy, Throttle
22210	22210-65030	Body Assy, Throttle
22216	22216-74010	Screw, Dash Pot Adjusting
22271	22271-65011	Gasket, Throttle Body
22271	22271-65020	Gasket, Throttle Body
23091	23091-35040	Hose, Fuel Pump
23206	23206-35160	Bracket, Fuel Pump
23206	77169-14010	Gasket, Fuel Pump Bracket
23217	23217-35040	Filter, Fuel Pump
23217	23217-61010	Filter, Fuel Pump
23220	23220-16190	Pump Assy, Fuel
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23233	23239-16010	Hose, Fuel Pump
23233	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
23233	96135-51300	Clamp, Hose
23249	23249-43080	Rubber, Cushion(For Fuel Pump)
23250	23209-65010	Injector Assy, Fuel
23250	23209-65020	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23260	23260-69045	Injector Assy, Cold Start Fuel
23260	23260-69055	Injector Assy, Cold Start Fuel
23264	23264-65010	Bracket, Fuel Filter
23270	23207-65010	Damper Assy, Fuel Pressure Pulsation
23270	90430-18016	Gasket(For Pulsation Damper Hose)
23280	23280-65010	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23293	23293-35010	Gasket, Cold Start Injector
23293	23293-35020	Gasket, Cold Start Injector
23300	23300-65010	Filter, Fuel(For Efi)
23300	23300-65020	Filter, Fuel(For Efi)
23802	23802-65020	Pipe Sub-Assy, Fuel, No.2
23802	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23802	90430-12005	Gasket(For Water Hole)
23803	23803-65020	Pipe Sub-Assy, Fuel, No.3
23807	23807-65010	Pipe Sub-Assy, Fuel Delivery
23807	23814-65030	Pipe Sub-Assy, Fuel Delivery
23807	90560-08055	Spacer, No.1(For Delivery Pipe)
23808	23808-65011	Pipe Sub-Assy, Fuel Delivery, No.2
23808	23815-65030	Pipe Sub-Assy, Fuel Delivery, No.2
23811	23801-65020	Pipe, Fuel, No.1
23811	23801-65021	Pipe, Fuel, No.1
23811	23273-65010	Hose, Fuel(For Fuel Pipe To Pressure Regulator)
23811	90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)
23811	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
23811	90467-11049	Clamp Or Clip, Hose(For Water By-Pass Hose)
23901	23901-65010	Tube Sub-Assy, Fuel
23901	90401-08003	Bolt, Union
23901	90430-08005	Gasket
2182115010	21821-15010	Screw(For Choke Lever Adapter Set)
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
9007911003	90079-11003	New Genuine Part
9011906095	90119-06095	New Genuine Part
9011908655	90119-08655	New Genuine Part
9011908662	90119-08662	New Genuine Part
9011908671	90119-08671	Bolt
9015950157	90159-50157	SCREW WWASHER
9030123004	90301-23004	Ring, O(For Fuel Injector)
9046108323	90461-08323	New Genuine Part
9046400184	90464-00184	Clamp, Vacuum Tube
9048001226	90480-01226	New Genuine Part
9056110002	90561-10002	Spacer(For Fuel Injector)
9165140818	91651-40818	BOLT, W-WASHER
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9411540400	94115-40400	NUT
9411540400	90076-01001	NUT
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9418040800	94180-40800	NUT
9451140400	94511-40400	New Genuine Part
9451140500	94511-40500	Nut(For Lpg Filter Stud Bolt Set)

OEM	Part name	Category
21821-15010	Screw(For Choke Lever Adapter Set)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22202-65011	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22202-65020	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22202-65030	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22202-65040	Dash Pot Sub-Assy(For Throttle Body)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22210-65011	Body Assy, Throttle	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22210-65021	Body Assy, Throttle	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22210-65030	Body Assy, Throttle	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22210-65040	Body Assy, Throttle	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22216-74010	Screw, Dash Pot Adjusting	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22271-65011	Gasket, Throttle Body	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
22271-65020	Gasket, Throttle Body	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23091-35040	Hose, Fuel Pump	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23206-35160	Bracket, Fuel Pump	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23207-65010	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23209-65010	Injector Assy, Fuel	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23209-65020	Injector Assy, Fuel	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23217-35040	Filter, Fuel Pump	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23217-61010	Filter, Fuel Pump	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23220-16190	Pump Assy, Fuel	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23239-16010	Hose, Fuel Pump	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23249-43080	Rubber, Cushion(For Fuel Pump)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23260-69045	Injector Assy, Cold Start Fuel	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23260-69055	Injector Assy, Cold Start Fuel	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23264-65010	Bracket, Fuel Filter	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23273-65010	Hose, Fuel(For Fuel Pipe To Pressure Regulator)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23280-65010	Regulator Assy, Fuel Pressure	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23293-35010	Gasket, Cold Start Injector	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23293-35020	Gasket, Cold Start Injector	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23300-65010	Filter, Fuel(For Efi)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23300-65020	Filter, Fuel(For Efi)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23801-65020	Pipe, Fuel, No.1	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23801-65021	Pipe, Fuel, No.1	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23802-65020	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23803-65020	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23807-65010	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23808-65011	Pipe Sub-Assy, Fuel Delivery, No.2	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23814-65030	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23815-65030	Pipe Sub-Assy, Fuel Delivery, No.2	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
23901-65010	Tube Sub-Assy, Fuel	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90076-01001	NUT	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90079-11003	New Genuine Part	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90080-11396	Bolt	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90119-06095	New Genuine Part	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90119-08655	New Genuine Part	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90119-08662	New Genuine Part	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90119-08671	Bolt	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90159-50157	SCREW WWASHER	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90301-23004	Ring, O(For Fuel Injector)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90401-08003	Bolt, Union	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90430-08005	Gasket	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90430-12005	Gasket(For Water Hole)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90430-18016	Gasket(For Pulsation Damper Hose)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90461-08323	New Genuine Part	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90464-00184	Clamp, Vacuum Tube	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90467-11049	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90480-01226	New Genuine Part	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90560-08055	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
90561-10002	Spacer(For Fuel Injector)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
91651-40818	BOLT, W-WASHER	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
91651-60816	BOLT	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
94115-40400	NUT	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
94180-40800	NUT	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
94511-40400	New Genuine Part	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
94511-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
96135-51300	Clamp, Hose	Fuel Injection System ([11.1987 - ] (8711- )3VZE)
