Search › Model › VZN195
VZN195

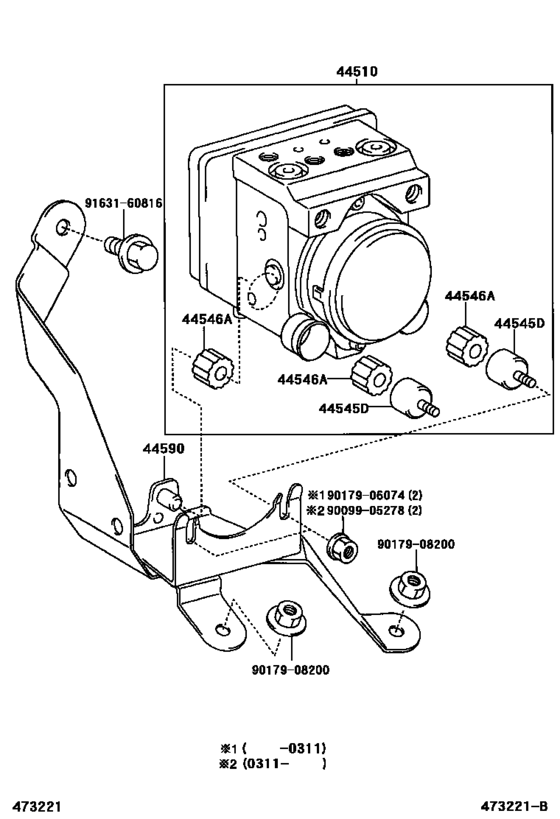

Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) 10
| # | OEM | Part name |
|---|---|---|
| 44510 | 44050-04010 | Actuator Assy, Brake |
| 44510 | 44050-04050 | Actuator Assy, Brake |
| 44545 | 44545-12010 | Holder, Brake Actuator Bolt |
| 44546 | 44546-04010 | Cushion, Brake Actuator Bolt |
| 44546 | 44546-60060 | Cushion, Brake Actuator Bolt |
| 44590 | 44590-04010 | Bracket Assy, Brake Actuator |
| 9009905278 | 90099-05278 | New Genuine Part |
| 9017906074 | 90179-06074 | Nut(For Suspension Control Oil Cooler) |
| 9017908200 | 90179-08200 | New Genuine Part |
| 9163160816 | 91631-60816 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 44050-04010 | Actuator Assy, Brake | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 44050-04050 | Actuator Assy, Brake | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 44545-12010 | Holder, Brake Actuator Bolt | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 44546-04010 | Cushion, Brake Actuator Bolt | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 44546-60060 | Cushion, Brake Actuator Bolt | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 44590-04010 | Bracket Assy, Brake Actuator | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 90099-05278 | New Genuine Part | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 90179-06074 | Nut(For Suspension Control Oil Cooler) | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 90179-08200 | New Genuine Part | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
| 91631-60816 | BOLT | Brake Tube & Clamp ([09.2002 - ] W(ABS) (0209- )) |
