VZN130

Toyota HILUX-SURF-4RUNNER · 1989 · 6,464 parts · 426 categories
VZN130 ×

← Back to categories

6,464 items

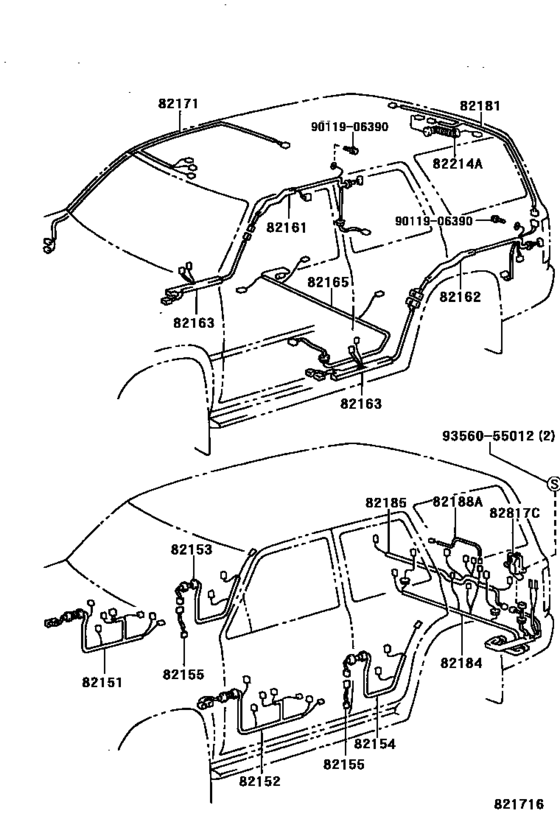

Wiring & Clamp ([04.1989 - ] ﾄﾞｱ,ｾﾝﾀﾋﾟﾗ-,ﾌﾚ-ﾑ,ﾙ-ﾌ & ﾊﾞﾂｸﾄﾞｱ ﾜｲﾔ (8904- )KZN130,LN13#,VZN130,YN130) 26
#OEMPart name
82151 82151-35050 Wire, Front Door, Rh
82152 82152-35050 Wire, Front Door, Lh
82153 82153-35010 Wire, Rear Door, No.1
82154 82154-35010 Wire, Rear Door, No.2
82161 82161-35010 Wire, Floor
82161 82161-35020 Wire, Floor
82161 82161-35021 Wire, Floor
82162 82162-35050 Wire, Floor, No.2
82162 82162-35051 Wire, Floor, No.2
82162 82162-35060 Wire, Floor, No.2
82162 82162-35061 Wire, Floor, No.2
82163 82163-35020 Wire, Floor, No.3
82163 82163-35040 Wire, Floor, No.3
82163 82163-35041 Wire, Floor, No.3
82165 82165-35030 Wire, Frame, No.2
82171 82171-35120 Wire, Roof, No.1
82171 82171-35130 Wire, Roof, No.1
82181 82181-35010 Wire, Luggage Room, No.1
82184 82184-35020 Wire, Back Door, No.1
82184 82184-35030 Wire, Back Door, No.1
82184 82184-35031 Wire, Back Door, No.1
82185 82185-35010 Wire, Back Door, No.2
82188 82188-35010 Wire, Back Door, No.3
82214 82214-35010 Wire, Lamp
82817 82817-89141 Protector, Wiring Harness, No.4
9011906390 90119-06390 BOLT WWASHER
