VZN130

Toyota HILUX-SURF-4RUNNER · 1989 · 6,464 parts · 426 categories
VZN130 ×

← Back to categories

6,464 items

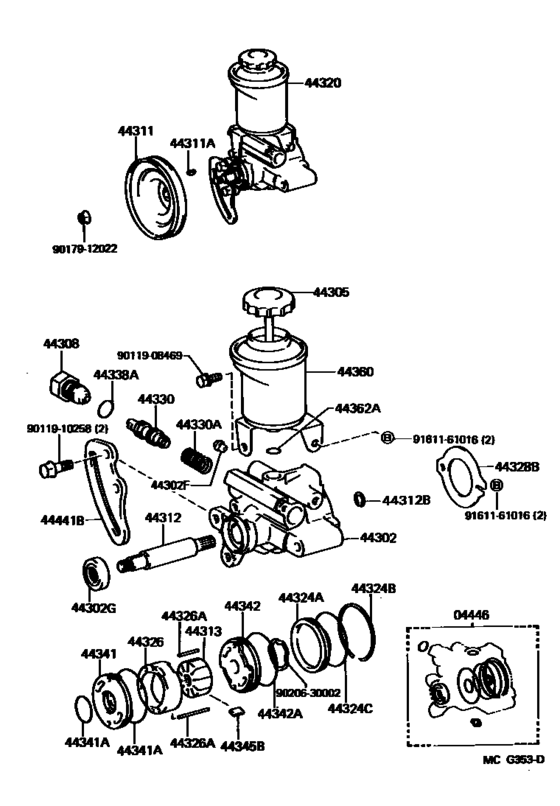

Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )VZN130..JPP) 70
#OEMPart name
4446 04446-60020 Gasket Kit, Power Steering Pump
4446 04446-60021 Gasket Kit, Power Steering Pump
44302 44302-60030 Housing Sub-Assy, Vane Pump, Front
44302 90311-18007 Seal, Oil, No.2(For Vane Pump Housing)
44305 44305-22040 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir
44308 44308-35040 Union Sub-Assy, Pressure Port
44311 44311-35020 Pulley, Vane Pump
44311 90280-05008 Key, Woodruff(For Distributor Drive Gear)
44312 44312-12030 Shaft, Vane Pump
44312 90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)
44313 44313-22040 Rotor, Vane Pump
44313 44313-22050 Rotor, Vane Pump
44313 44313-22060 Rotor, Vane Pump
44313 44313-22070 Rotor, Vane Pump
44313 44313-22080 Rotor, Vane Pump
44313 44313-35010 Rotor, Vane Pump
44320 44320-35420 Pump Assy, Vane
44324 44324-12031 Housing Sub-Assy, Vane Pump, Rear
44324 90521-62002 Ring, Snap, No.1(For Vane Pump Housing)
44324 90301-53004 Ring, O(For Pump Housing Rear)
44324 90301-53006 Ring, O(For Pump Housing Rear)
44324 90301-53007 Ring, O(For Pump Housing Rear)
44326 44325-35010 Ring, Cam(For Vane Pump)
44326 44325-50010 Ring, Cam(For Vane Pump)
44326 44325-35020 Ring, Cam(For Vane Pump)
44326 44325-50020 Ring, Cam(For Vane Pump)
44326 44325-35030 Ring, Cam(For Vane Pump)
44326 44325-50030 Ring, Cam(For Vane Pump)
44326 44325-35040 Ring, Cam(For Vane Pump)
44326 44325-50040 Ring, Cam(For Vane Pump)
44326 44325-35050 Ring, Cam(For Vane Pump)
44326 44325-50050 Ring, Cam(For Vane Pump)
44326 90250-04047 Pin, Straight(For Vane Pump Cam Ring)
44326 90250-04049 Pin, Straight(For Vane Pump Cam Ring)
44328 44328-35010 End, Vane Pump Housing
44330 44330-20310 Valve Assy, Flow Control
44330 44330-35250 Valve Assy, Flow Control
44330 44330-20320 Valve Assy, Flow Control
44330 44330-35260 Valve Assy, Flow Control
44330 44330-20330 Valve Assy, Flow Control
44330 44330-35270 Valve Assy, Flow Control
44330 44330-20340 Valve Assy, Flow Control
44330 44330-35280 Valve Assy, Flow Control
44330 44330-20350 Valve Assy, Flow Control
44330 44330-35290 Valve Assy, Flow Control
44330 44330-20360 Valve Assy, Flow Control
44330 44330-35300 Valve Assy, Flow Control
44330 90501-12103 Spring, Compression(For Flow Control Valve)
44338 90301-19003 Ring, O(For Pressure Port Union)
44338 90301-19018 Ring, O(For Pressure Port Union)
44341 44341-20010 Plate, Vane Pump Side, Front
44341 90301-25008 Ring, O(For Vane Pump Front Side Plate)
44342 44342-20010 Plate, Vane Pump Side, Rear
44345 44345-12010 Plate, Vane Pump
44345 44345-12020 Plate, Vane Pump
44345 44345-12030 Plate, Vane Pump
44345 44345-12040 Plate, Vane Pump
44345 44345-12050 Plate, Vane Pump
44345 44345-35010 Plate, Vane Pump
44360 44306-35150 Reservoir Assy, Vane Pump Oil
44362 90301-12003 Ring, O(For Power Steering Suction Port)
44362 90301-11016 Ring, O(For Power Steering Suction Port)
44441 44441-35030 Bracket, Pump, Front
9011908469 90119-08469 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9011910258 90119-10258 New Genuine Part
9017912022 90179-12022 Nut(For Vane Pump Pulley)
9020630002 90206-30002 New Genuine Part
9161161016 91611-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
