Search › Model › VZJ95

VZJ95

Toyota LAND-CRUISER-PRADO · 1996 · 4,639 parts · 236 categories

4,639 items

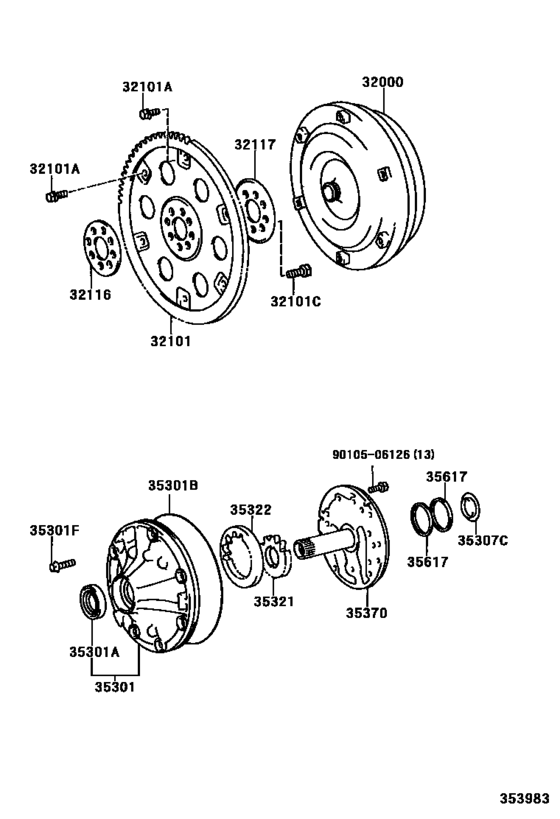

Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM) 39

#	OEM	Part name
32000	32000-35150	Converter Assy, Torque
32101	32101-35010	Gear Sub-Assy, Drive Plate & Ring
32101	90119-09009	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09010	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32116	32116-32020	Spacer, Drive Plate, Front
32117	32117-32020	Spacer, Drive Plate, Rear
35301	35301-30040	Body Sub-Assy, Front Oil Pump
35301	35301-35010	Body Sub-Assy, Front Oil Pump
35301	90311-38029	Seal, Oil (For Front Oil Pump)
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90311-38087	Seal, Oil (For Front Oil Pump)
35301	90301-99033	Ring, O (For Front Oil Pump Body)
35301	90105-08091	Bolt (For Front Oil Pump Setting)
35307	35789-30020	Race, Thrust Bearing (For Stator Shaft)
35307	35789-30340	Race, Thrust Bearing (For Stator Shaft)
35321	35321-12020	Gear, Front Oil Pump Drive
35321	35321-12030	Gear, Front Oil Pump Drive
35321	35321-12040	Gear, Front Oil Pump Drive
35321	35321-12050	Gear, Front Oil Pump Drive
35321	35321-12060	Gear, Front Oil Pump Drive
35321	35321-12070	Gear, Front Oil Pump Drive
35321	35321-12080	Gear, Front Oil Pump Drive
35321	35321-12090	Gear, Front Oil Pump Drive
35321	35321-12100	Gear, Front Oil Pump Drive
35321	35321-12110	Gear, Front Oil Pump Drive
35322	35322-12010	Gear, Front Oil Pump Driven
35322	35322-12020	Gear, Front Oil Pump Driven
35322	35322-12030	Gear, Front Oil Pump Driven
35322	35322-12040	Gear, Front Oil Pump Driven
35322	35322-12050	Gear, Front Oil Pump Driven
35322	35322-12060	Gear, Front Oil Pump Driven
35322	35322-12070	Gear, Front Oil Pump Driven
35322	35322-12080	Gear, Front Oil Pump Driven
35322	35322-12090	Gear, Front Oil Pump Driven
35322	35322-12100	Gear, Front Oil Pump Driven
35370	35370-30031	Shaft Sub-Assy, Stator
35617	35617-30020	Ring, Clutch Drum Oil Seal
9010506126	90105-06126	Bolt (For Stator Shaft)

OEM	Part name	Category
32000-35150	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
32101-35010	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
32116-32020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
32117-32020	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35301-30040	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35301-35010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35321-12110	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35322-12100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35370-30031	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35617-30020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35789-30020	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
35789-30340	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90105-06126	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90105-08091	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90119-09009	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90119-09010	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90301-99033	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90311-38029	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)
90311-38087	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.1996 - ] A343F (9604- )RZJ95,VZJ95..ATM)

Source: Public OEM parts-catalog data
Variants: 1 / 12
Category: 236
Collected: 2026-08-02
