| 35207-22010 |
Spring Sub-Assy, B-0 Accumulator |

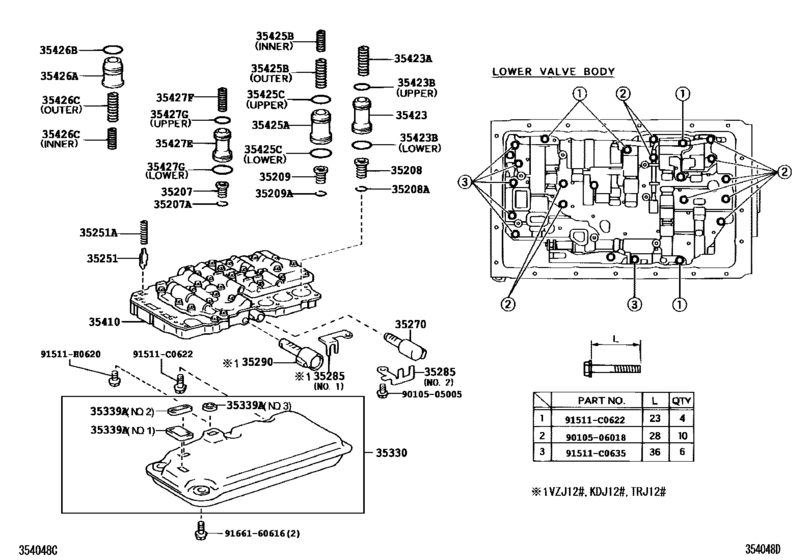

Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35208-22010 |
Spring Sub-Assy, B-2 Accumulator |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35209-30010 |
Spring Sub-Assy, C-2 Accumulator |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35250-30050 |
Solenoid Assy, Transmission |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35250-30070 |
Solenoid Assy, Transmission |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35251-30020 |
Body, Check Ball |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35270-14010 |
Solenoid Assy, Shift Control |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35285-24010 |
Plate, Solenoid Lock |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35285-24020 |
Plate, Solenoid Lock |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35290-60020 |
Solenoid Assy, Line Pressure Control |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35330-60030 |
Strainer Assy, Valve Body Oil |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35410-35740 |
Body Assy, Transmission Valve |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35423-30030 |
Piston, B-2 Accumulator |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35425-30020 |
Piston, C-2 Accumulator |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35426-40010 |
Piston, C-0 Accumulator |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35427-30040 |
Piston, B-0 Accumulator |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35481-24010 |
Clamp, Valve Body Wire Harness |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 35482-60030 |
Clamp, Temperature Sensor |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 82125-30470 |
Wire, Transmission |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90105-05005 |
Bolt (For Transfer Relief Valve Plate) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90105-06018 |
Bolt (For Throttle Valve Cam Set) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90105-06049 |
Bolt(For Transmission Case No.2 Plate) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90301-06004 |
Ring, O No.3(For Transmission Solenoid) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90301-20008 |
Ring, O (For C-2 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90301-23010 |
Ring (For Accumulator Piston No.1) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90301-24010 |
Ring, O (For C-0 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90301-25010 |
Ring, O(For Oil Pump Suction Pipe) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90301-26011 |
Ring, O (For C-3 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90301-31010 |
Ring, O (For B-2 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90501-03005 |
Spring, Compression (For Check Ball Body) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90501-21006 |
Spring, Compression (For B-0 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90501-22008 |
Spring, Compression (For C-2 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90501-23073 |
Spring, Compression (For C-0 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90501-23093 |
Spring, Compression (For C-2 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90501-25027 |
Spring, Compression (For C-2 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90501-27019 |
Spring, Compression (For B-2 Accumulator Piston) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 90521-22004 |
Ring, Hole Snap (For B-3 Accumulator Spring) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 91511-C0622 |
Strainer Bolt |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 91511-C0635 |
BOLT, FLANGE |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 91511-H0620 |
Bolt (For Transaxle Case Upper Cover) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 91611-B0616 |
Bolt(For Transaxle Case Receiver) |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 91661-60616 |
BOLT |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
| 96721-24018 |
Ring, O |
Valve Body & Oil Strainer (Atm) ([09.2002 - ] A343F (0209- )KDJ12#,RZJ12#,TRJ12#,VZJ12#) |
