VZJ120

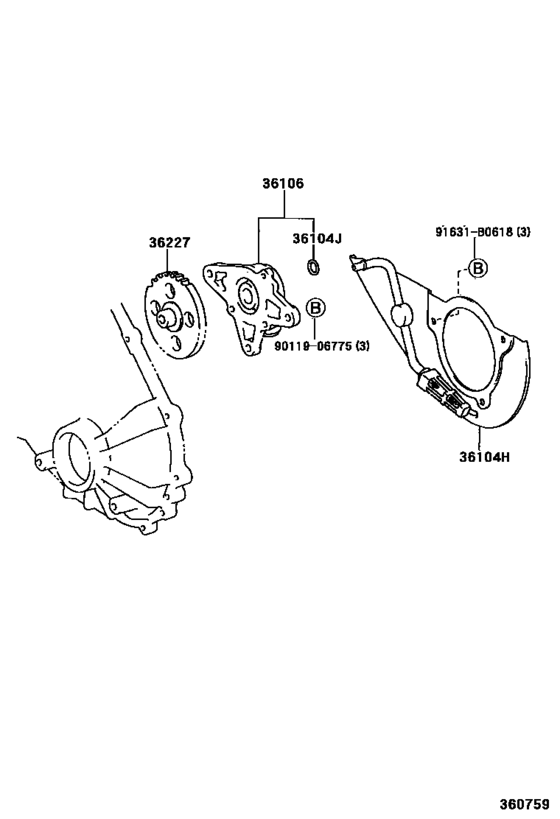

Transfer Oil Pump ([09.2002 - ] (0209- )) 6
| # | OEM | Part name |
|---|---|---|
| 36104 | 36104-35050 | Separator Sub-Assy, Transfer Oil |
| 36104 | 96721-19009 | Ring, O(For Oil Level Gage) |
| 36106 | 36106-35050 | Body Sub-Assy, Transfer Oil Pump |
| 36227 | 36227-35030 | Gear, Transfer Oil Pump |
| 91631 | 91631-B0618 | BOLT WWASHER |
| 9011906775 | 90119-06775 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 36104-35050 | Separator Sub-Assy, Transfer Oil | Transfer Oil Pump ([09.2002 - ] (0209- )) |
| 36106-35050 | Body Sub-Assy, Transfer Oil Pump | Transfer Oil Pump ([09.2002 - ] (0209- )) |
| 36227-35030 | Gear, Transfer Oil Pump | Transfer Oil Pump ([09.2002 - ] (0209- )) |
| 90119-06775 | BOLT WWASHER | Transfer Oil Pump ([09.2002 - ] (0209- )) |
| 91631-B0618 | BOLT WWASHER | Transfer Oil Pump ([09.2002 - ] (0209- )) |
| 96721-19009 | Ring, O(For Oil Level Gage) | Transfer Oil Pump ([09.2002 - ] (0209- )) |
