Search › Model › VZJ120

VZJ120

Toyota LAND-CRUISER-PRADO · 2002 · 5,223 parts · 209 categories

5,223 items

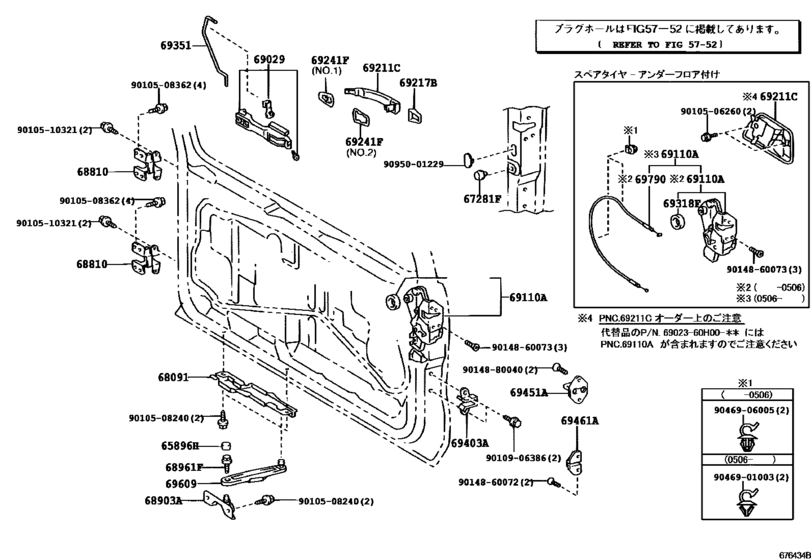

Back Door Lock & Hinge ([09.2002 - ] (0209- )) 84

#	OEM	Part name
65896	65896-60020	Cap, Cover Top Set Bolt, B
67281	67282-46010	Stopper, Back Door, Lower
68091	68091-60010	Rail Sub-Assy, Back Door Stay, Rh
68810	68801-60050	Hinge Sub-Assy, Back Door, Rh
68810	68801-60052	Hinge Sub-Assy, Back Door, Rh
68903	68903-60010	Bracket Sub-Assy, Back Door Stay, Rh
68961	68961-60020	Bolt, Back Door Stay
69029	69029-60010	Frame Sub-Assy, Back Door Outside Handle
69110	69110-60170	Lock Assy, Back Door W/motor
69110	69110-60173	Lock Assy, Back Door W/motor
69110	69110-60190	Lock Assy, Back Door W/motor
69110	69110-60192	Actuator Assy, Front Door Lock, Rh
69110	69110-60200	Lock Assy, Back Door W/motor
69110	69110-60202	Lock Assy, Back Door W/motor
69211	69023-60010-A1	Handle, Back Door Outside
69211	69023-60H00-A1	Handle, Back Door Outside
69211	69023-60010-B0	Handle, Back Door Outside
69211	69023-60H00-B0	Handle, Back Door Outside
69211	69023-60010-B2	Handle, Back Door Outside
69211	69023-60H00-B2	Handle, Back Door Outside
69211	69023-60010-C0	Handle, Back Door Outside
69211	69023-60H00-C0	Handle, Back Door Outside
69211	69023-60010-D0	Handle, Back Door Outside
69211	69023-60H00-D0	Handle, Back Door Outside
69211	69023-60010-F0	Handle, Back Door Outside
69211	69023-60H00-F0	Handle, Back Door Outside
69211	69023-60010-G1	Handle, Back Door Outside
69211	69023-60H00-G1	Handle, Back Door Outside
69211	69023-60010-J0	Handle, Back Door Outside
69211	69023-60H00-J0	Handle, Back Door Outside
69211	69023-60011-A1	Handle, Back Door Outside
69211	69023-60011-B0	Handle, Back Door Outside
69211	69023-60011-B2	Handle, Back Door Outside
69211	69023-60011-C0	Handle, Back Door Outside
69211	69023-60011-D0	Handle, Back Door Outside
69211	69023-60011-F0	Handle, Back Door Outside
69211	69023-60011-G1	Handle, Back Door Outside
69211	69023-60011-J0	Handle, Back Door Outside
69211	69023-60012-A0	Handle, Back Door Outside
69211	69023-60012-A1	Handle, Back Door Outside
69211	69023-60012-C0	Handle, Back Door Outside
69211	69023-60012-F0	Handle, Back Door Outside
69211	69023-60012-G1	Handle, Back Door Outside
69211	69023-60012-J0	Handle, Back Door Outside
69211	69211-28070-A3	Handle Assy, Front Door, Outside Rh
69211	69211-28070-B0	Handle Assy, Front Door, Outside Rh
69211	69211-28070-P2	Handle Assy, Front Door, Outside Rh
69211	69211-28070-B4	Handle Assy, Front Door, Outside Rh
69211	69211-28070-C1	Handle Assy, Front Door, Outside Rh
69211	69211-28070-D3	Handle Assy, Front Door, Outside Rh
69211	69211-28070-F2	Handle Assy, Front Door, Outside Rh
69211	69211-28070-E6	Handle Assy, Rear Door Outside, Rh
69211	69211-28070-G0	Handle Assy, Front Door, Outside Rh
69211	69211-28070-J3	Handle Assy, Front Door, Outside Rh
69217	69217-60020-A1	Cover, Back Door Outside Handle
69217	69217-60020-B0	Cover, Back Door Outside Handle
69217	69217-60020-P0	Cover, Back Door Outside Handle
69217	69217-60020-B1	Cover, Back Door Outside Handle
69217	69217-60020-C0	Cover, Back Door Outside Handle
69217	69217-60020-D1	Cover, Back Door Outside Handle
69217	69217-60020-F0	Cover, Back Door Outside Handle
69217	69217-60020-E7	Cover, Front Door Outside Handle, Lh
69217	69217-60020-G1	Cover, Back Door Outside Handle
69217	69217-60020-J2	Cover, Back Door Outside Handle
69241	69241-28060	Pad, Front Door Outside Handle, Rh
69241	69242-60030	Pad, Front Door Outside Handle, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69351	69378-60030	Rod, Back Door Lock Control, Upper
69403	69403-60011	Stopper Sub-Assy, Back Door Side Female, Rh
69451	69410-60010	Plate Assy, Rear Door Lock Striker
69461	69461-60010	Stopper, Back Door Side Male, Rh
69609	69609-60010	Link Sub-Assy, Back Door, Lower
69790	69790-60100	Control Assy, Back Door Lock
9010506260	90105-06260	BOLT, WASHER BASED
9010508240	90105-08240	BOLT WASHER BASED
9010508362	90105-08362	BOLT WASHER BASED
9010510321	90105-10321	BOLT WASHER BASED
9010906386	90109-06386	BOLT
9014860072	90148-60072	SCREW HEXALOBULAR
9014860073	90148-60073	SCREW HEXALOBULAR
9014880040	90148-80040	Screw Hex Lobular
9046901003	90469-01003	Clamp(For Hood Lock Control Cable)
9046906005	90469-06005	Clamp(For Hood Lock Control Cable)
9095001229	90950-01229	Plug, Hole(For Rear Door Panel)

OEM	Part name	Category
65896-60020	Cap, Cover Top Set Bolt, B	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
67282-46010	Stopper, Back Door, Lower	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
68091-60010	Rail Sub-Assy, Back Door Stay, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
68801-60050	Hinge Sub-Assy, Back Door, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
68801-60052	Hinge Sub-Assy, Back Door, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
68903-60010	Bracket Sub-Assy, Back Door Stay, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
68961-60020	Bolt, Back Door Stay	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-A1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-B0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-B2	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-C0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-D0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-F0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-G1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60010-J0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-A1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-B0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-B2	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-C0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-D0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-F0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-G1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60011-J0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60012-A0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60012-A1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60012-C0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60012-F0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60012-G1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60012-J0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-A1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-B0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-B2	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-C0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-D0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-F0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-G1	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69023-60H00-J0	Handle, Back Door Outside	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69029-60010	Frame Sub-Assy, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69110-60170	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69110-60173	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69110-60190	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69110-60192	Actuator Assy, Front Door Lock, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69110-60200	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69110-60202	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-A3	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-B0	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-B4	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-C1	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-D3	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-E6	Handle Assy, Rear Door Outside, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-F2	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-G0	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-J3	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69211-28070-P2	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-A1	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-B0	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-B1	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-C0	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-D1	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-E7	Cover, Front Door Outside Handle, Lh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-F0	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-G1	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-J2	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69217-60020-P0	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69241-28060	Pad, Front Door Outside Handle, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69242-60030	Pad, Front Door Outside Handle, Lh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69378-60030	Rod, Back Door Lock Control, Upper	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69403-60011	Stopper Sub-Assy, Back Door Side Female, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69410-60010	Plate Assy, Rear Door Lock Striker	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69461-60010	Stopper, Back Door Side Male, Rh	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69609-60010	Link Sub-Assy, Back Door, Lower	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
69790-60100	Control Assy, Back Door Lock	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90105-06260	BOLT, WASHER BASED	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90105-08240	BOLT WASHER BASED	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90105-08362	BOLT WASHER BASED	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90105-10321	BOLT WASHER BASED	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90109-06386	BOLT	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90148-60072	SCREW HEXALOBULAR	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90148-60073	SCREW HEXALOBULAR	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90148-80040	Screw Hex Lobular	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90469-01003	Clamp(For Hood Lock Control Cable)	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90469-06005	Clamp(For Hood Lock Control Cable)	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
90950-01229	Plug, Hole(For Rear Door Panel)	Back Door Lock & Hinge ([09.2002 - ] (0209- ))
