VY12

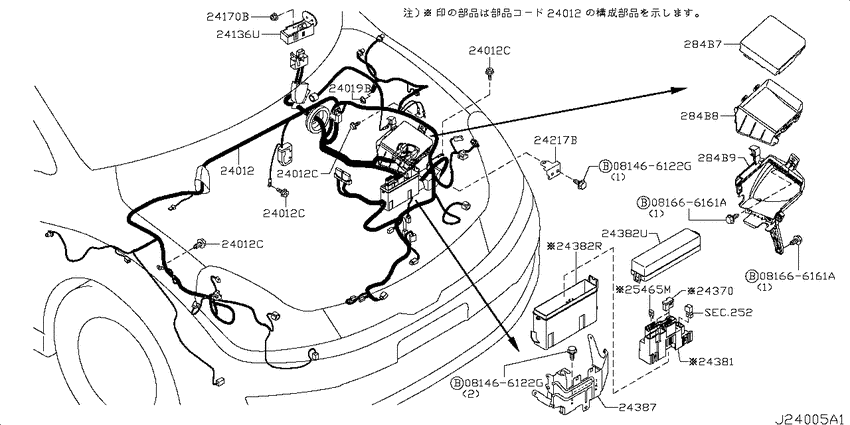

Wiring (2006-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; V.HR15DE) 4
| # | OEM | Part name |
|---|---|---|
| 24012 | 24012-JJ00A | Harness Assy-Engine Room |
| 24019 | 01225-00691 | NUT |
| 24217 | 24239-ED000 | Bracket-Harness Clip |
| 81666161 | 08166-6161A | ボルト |
| OEM | Part name | Category |
|---|---|---|
| 01225-00691 | NUT | Wiring (2006-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; V.HR15DE) |
| 08166-6161A | ボルト | Wiring (2006-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; V.HR15DE) |
| 24012-JJ00A | Harness Assy-Engine Room | Wiring (2006-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; V.HR15DE) |
| 24239-ED000 | Bracket-Harness Clip | Wiring (2006-12-01 ~ ; ｴﾝｼﾞﾝ ﾙｰﾑ ﾊｰﾈｽ; V.HR15DE) |
