Search › Model › VY12
VY12

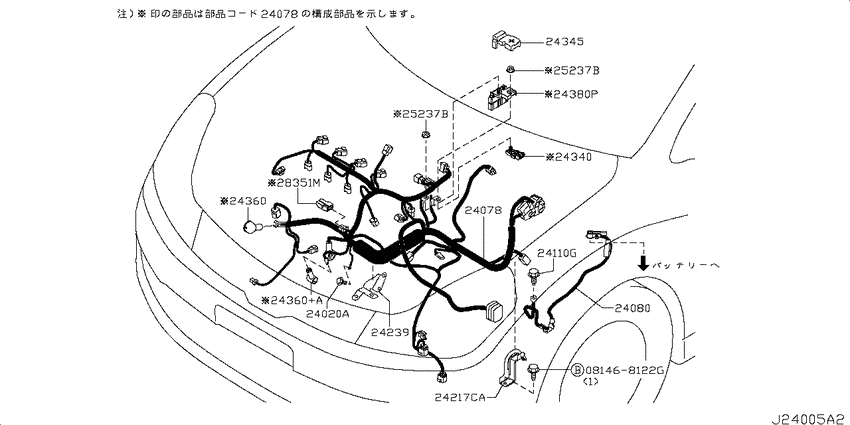

Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) 12
| # | OEM | Part name |
|---|---|---|
| 24078 | 24011-JJ00A | Harness Assy-Egi |
| 24078 | 24011-JJ01A | Harness Assy-Egi |
| 24080 | 24080-JJ00A | Cable Assy-Battery Earth |
| 24080 | 24080-JJ00B | Cable Assy-Battery Earth |
| 24110 | 01125-02501 | BOLT |
| 24217 | 24239-ED50A | Bracket-Harness Clip |
| 24239 | 24239-ED001 | Bracket-Harness |
| 24345 | 24345-7992A | Cover-Connector |
| 24360 | 24360-4E100 | CAP-TERMINAL |
| 24360 | 24360-ED023 | Cap-Terminal |
| 28351 | 28351-89902 | Condensor-Ignition Coil |
| 81468122 | 08146-8122G | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01125-02501 | BOLT | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 08146-8122G | Bolt-hexagon | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24011-JJ00A | Harness Assy-Egi | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24011-JJ01A | Harness Assy-Egi | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24080-JJ00A | Cable Assy-Battery Earth | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24080-JJ00B | Cable Assy-Battery Earth | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24239-ED001 | Bracket-Harness | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24239-ED50A | Bracket-Harness Clip | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24345-7992A | Cover-Connector | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24360-4E100 | CAP-TERMINAL | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 24360-ED023 | Cap-Terminal | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
| 28351-89902 | Condensor-Ignition Coil | Wiring (2006-12-01 ~ ; EGI ﾊｰﾈｽ; V.HR15DE) |
