VY12

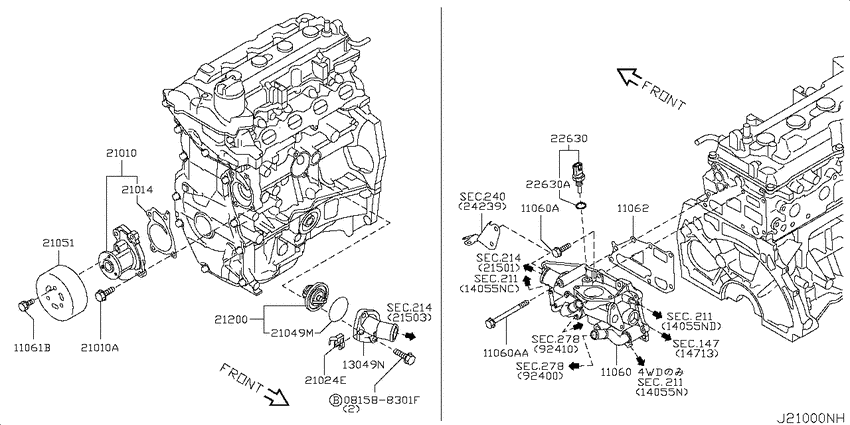

Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) 8
| # | OEM | Part name |
|---|---|---|
| 11060 | 11060-ED01A | Outlet-Water |
| 11060 | 01125-E8041 | Bolt |
| 11060 | 01125-E8151 | Bolt |
| 21010 | 21010-ED025 | Pump Assy-Water |
| 21014 | 21014-ED000 | Gasket-Water Pump |
| 21200 | 21200-ED000 | Thermostat Assy |
| 22630 | 22630-ED000 | Engine Coolant Temperature Sensor |
| 81588301 | 08158-8301F | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 01125-E8041 | Bolt | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
| 01125-E8151 | Bolt | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
| 08158-8301F | BOLT | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
| 11060-ED01A | Outlet-Water | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
| 21010-ED025 | Pump Assy-Water | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
| 21014-ED000 | Gasket-Water Pump | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
| 21200-ED000 | Thermostat Assy | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
| 22630-ED000 | Engine Coolant Temperature Sensor | Water pump, cooling fan & thermostat (2006-12-01 ~ ; HR15DE) |
