Search › Model › VY12
VY12

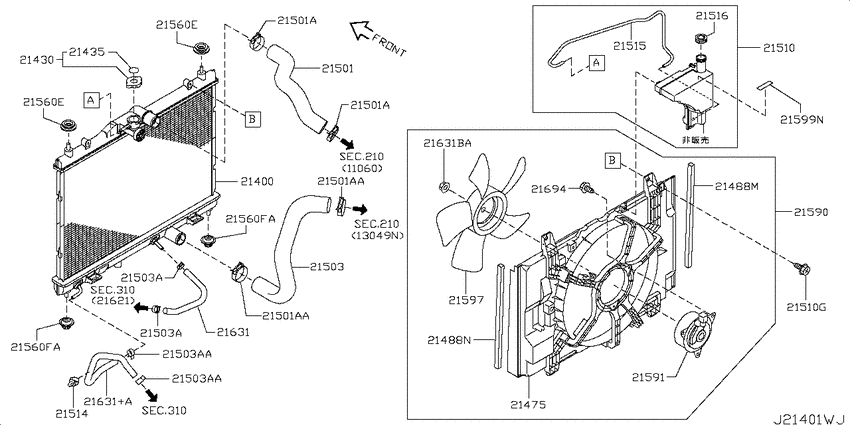

Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) 8
| # | OEM | Part name |
|---|---|---|
| 21400 | 21460-CV000 | Radiator Assy |
| 21430 | 21430-7999C | Cap Assy-Radiator |
| 21435 | 21435-89960 | Label-Caution, Radiator |
| 21488 | 21498-EW00B | Seal-Radiator, Rh |
| 21488 | 21499-EW00B | Seal-Radiator, Lh |
| 21501 | 01558-00731 | CLAMP-HOSE |
| 21560 | 21506-AX300 | Mounting Rubber-Radiator, Upper |
| 21694 | 21694-0M300 | Bolt-Special |
| OEM | Part name | Category |
|---|---|---|
| 01558-00731 | CLAMP-HOSE | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
| 21430-7999C | Cap Assy-Radiator | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
| 21435-89960 | Label-Caution, Radiator | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
| 21460-CV000 | Radiator Assy | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
| 21498-EW00B | Seal-Radiator, Rh | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
| 21499-EW00B | Seal-Radiator, Lh | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
| 21506-AX300 | Mounting Rubber-Radiator, Upper | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
| 21694-0M300 | Bolt-Special | Radiator, shroud & fitting (2006-12-01 ~ ; フィッティングパーツ; HR15DE) |
