Search › Model › VY12
VY12

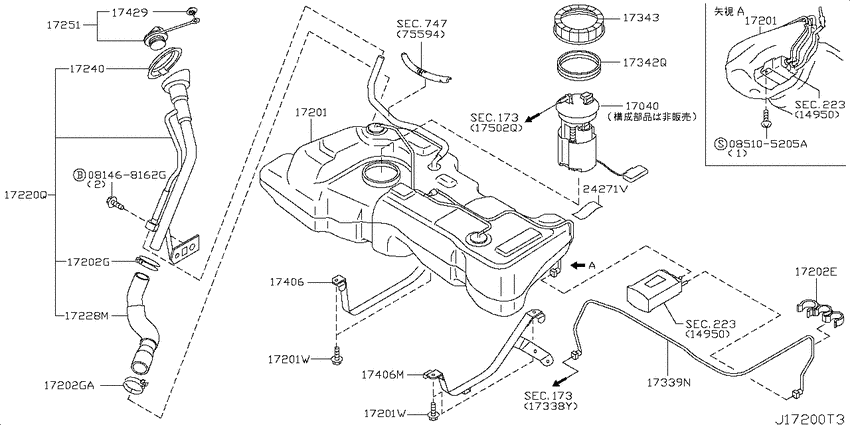

Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) 8
| # | OEM | Part name |
|---|---|---|
| 17202 | 24220-JJ00A | Clip |
| 17202 | 01555-00291 | CLAMP-HOSE |
| 17202 | 01555-00381 | CLAMP-HOSE |
| 17220 | 17220-JJ00A | Tube Assy-Filler |
| 17406 | 17406-JJ00A | Band Assy-Fuel Tank Mounting |
| 17406 | 17407-JJ00A | Band Assy-Fuel Tank, Mounting |
| 24271 | 24271-9Y02A | Protector-Harness |
| 85105205 | 08510-5205A | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 01555-00291 | CLAMP-HOSE | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
| 01555-00381 | CLAMP-HOSE | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
| 08510-5205A | スクリユ-,タツピング | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
| 17220-JJ00A | Tube Assy-Filler | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
| 17406-JJ00A | Band Assy-Fuel Tank Mounting | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
| 17407-JJ00A | Band Assy-Fuel Tank, Mounting | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
| 24220-JJ00A | Clip | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
| 24271-9Y02A | Protector-Harness | Fuel tank (2006-12-01 ~ ; HR15DE.(VE+GX) +MR18DE) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 7
- Category
- 179
- Collected
- 2026-07-29
