VY12

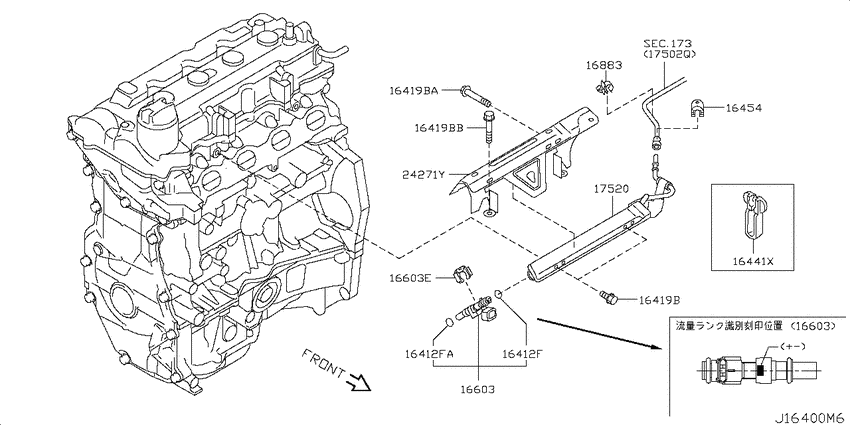

Fuel strainer & fuel hose (2006-12-01 ~ ; 標準仕様; HR15DE) 5
| # | OEM | Part name |
|---|---|---|
| 16419 | 01125-E8091 | Bolt |
| 16603 | 16600-ED001 | Injector Assy-Fuel |
| 16603 | 16600-ED002 | Injector Assy-Fuel |
| 16603 | 17571-5L300 | Clamp-Injector |
| 24271 | 16265-ED000 | Protector-Hose |
| OEM | Part name | Category |
|---|---|---|
| 01125-E8091 | Bolt | Fuel strainer & fuel hose (2006-12-01 ~ ; 標準仕様; HR15DE) |
| 16265-ED000 | Protector-Hose | Fuel strainer & fuel hose (2006-12-01 ~ ; 標準仕様; HR15DE) |
| 16600-ED001 | Injector Assy-Fuel | Fuel strainer & fuel hose (2006-12-01 ~ ; 標準仕様; HR15DE) |
| 16600-ED002 | Injector Assy-Fuel | Fuel strainer & fuel hose (2006-12-01 ~ ; 標準仕様; HR15DE) |
| 17571-5L300 | Clamp-Injector | Fuel strainer & fuel hose (2006-12-01 ~ ; 標準仕様; HR15DE) |
