VY12

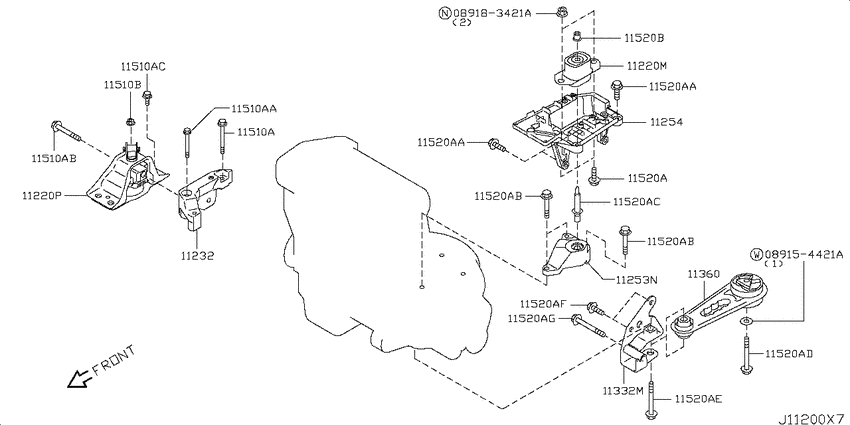

Engine & transmission mounting (2006-12-01 ~ ; HR15DE) 6
| # | OEM | Part name |
|---|---|---|
| 11232 | 11232-ED000 | Bracket-Engine Mounting, Rh |
| 11332 | 11332-ED000 | Bracket-Engine Mounting, Rear |
| 11510 | 01125-03011 | BOLT |
| 11510 | 11298-AX004 | Bolt |
| 11520 | 11298-6M001 | Bolt |
| 11520 | 01125-02871 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 01125-02871 | BOLT | Engine & transmission mounting (2006-12-01 ~ ; HR15DE) |
| 01125-03011 | BOLT | Engine & transmission mounting (2006-12-01 ~ ; HR15DE) |
| 11232-ED000 | Bracket-Engine Mounting, Rh | Engine & transmission mounting (2006-12-01 ~ ; HR15DE) |
| 11298-6M001 | Bolt | Engine & transmission mounting (2006-12-01 ~ ; HR15DE) |
| 11298-AX004 | Bolt | Engine & transmission mounting (2006-12-01 ~ ; HR15DE) |
| 11332-ED000 | Bracket-Engine Mounting, Rear | Engine & transmission mounting (2006-12-01 ~ ; HR15DE) |
