Search › Model › VY12
VY12

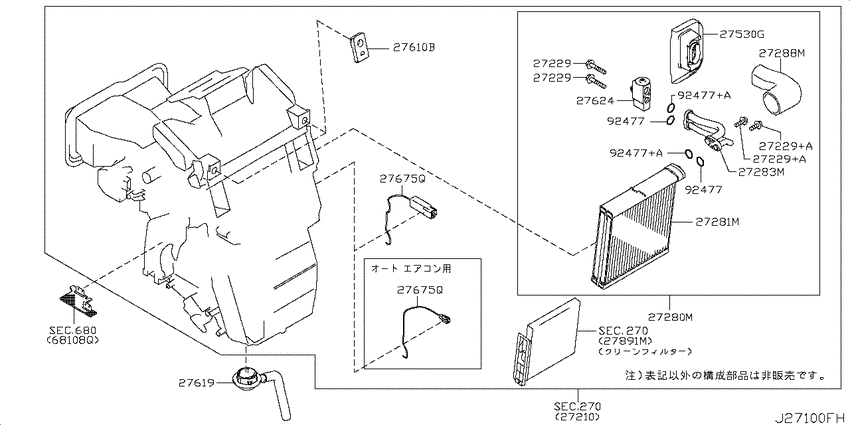

Cooling unit (2006-12-01 ~ ; V) 8
| # | OEM | Part name |
|---|---|---|
| 27229 | 27229-1U63A | Bolt-Kit |
| 27280 | 27280-ED00A | Evaporator Assy-Front |
| 27283 | 27283-ED000 | Pipe Assy-Cooler, In |
| 27288 | 27288-ED02A | Insulator |
| 27530 | 92565-EF70A | Cover-Grommet |
| 27610 | 27462-1U60A | Nut |
| 27675 | 27675-EE40A | Amplifier-Thermo |
| 92477 | 92477-AX000 | Seal-O Ring |
| OEM | Part name | Category |
|---|---|---|
| 27229-1U63A | Bolt-Kit | Cooling unit (2006-12-01 ~ ; V) |
| 27280-ED00A | Evaporator Assy-Front | Cooling unit (2006-12-01 ~ ; V) |
| 27283-ED000 | Pipe Assy-Cooler, In | Cooling unit (2006-12-01 ~ ; V) |
| 27288-ED02A | Insulator | Cooling unit (2006-12-01 ~ ; V) |
| 27462-1U60A | Nut | Cooling unit (2006-12-01 ~ ; V) |
| 27675-EE40A | Amplifier-Thermo | Cooling unit (2006-12-01 ~ ; V) |
| 92477-AX000 | Seal-O Ring | Cooling unit (2006-12-01 ~ ; V) |
| 92565-EF70A | Cover-Grommet | Cooling unit (2006-12-01 ~ ; V) |
