VY12

Nissan WINGROAD-AD-EXPERT · 2006 · 1,295 parts · 179 categories

1,295 items

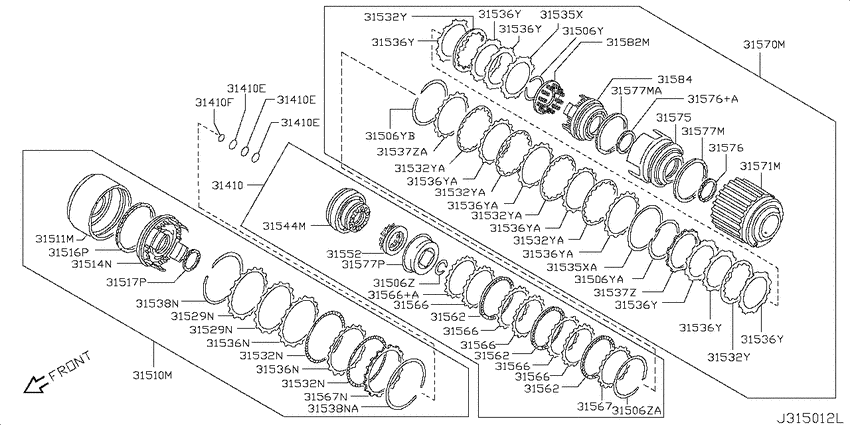

Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4) 66

#	OEM	Part name
31410	31410-3CX00	High Clutch & Input Shaft Assy
31410	31525-31X02	Seal-O Ring
31506	31506-31X04	Ring-Snap, Foward Clutch
31506	31506-31X03	Ring-Snap, Overrun Clutch
31506	31506-31X05	Ring-Snap, Foward Clutch
31506	31506-31X16	Ring-Snap
31506	31506-31X09	Ring-Snap
31506	31506-31X08	Ring-Snap, Clutch Drum
31510	31510-3CX00	Clutch Assy-Reverse
31511	31511-3CX00	Drum-Reverse Clutch
31514	31514-3CX00	Piston Assy-Clutch
31516	31528-31X11	Seal-Lip
31517	31527-31X22	Seal-Lathe Cut Ring
31529	31535-3CX01	Plate-Dished
31532	31532-3CX00	Plate Assy-Drive
31532	31532-31X24	Plate Assy-Drive
31532	31532-31X60	Plate Assy-Drive
31532	31532-31X62	Plate Assy-Drive
31535	31535-31X03	Plate-Dished
31535	31535-31X02	Plate-Dished
31535	31535-3CX00	Plate-Dished
31536	31536-31X21	Plate-Driven
31536	31536-31X18	Plate-Driven
31536	31536-31X17	Plate-Driven
31537	31567-31X79	Plate-Retaining
31537	31567-31X80	Plate-Retaining
31537	31567-31X81	Plate-Retaining
31537	31567-31X82	Plate-Retaining
31537	31567-31X83	Plate-Retaining
31537	31537-31X60	Plate-Retaining, Foward Clutch
31537	31537-31X61	Plate-Retaining, Foward Clutch
31537	31537-31X62	Plate-Retaining, Foward Clutch
31537	31537-31X63	Plate-Retaining, Foward Clutch
31537	31537-31X64	Plate-Retaining, Foward Clutch
31537	31537-31X65	Plate-Retaining, Foward Clutch
31538	31506-31X07	Ring-Snap
31538	31506-31X06	Ring-Snap
31544	31544-3CX00	Piston Assy-High Clutch
31552	31521-3CX00	Retainer-Spring
31562	31532-31X20	Plate Assy-Drive
31566	31536-31X19	Plate-Driven
31566	31536-31X20	Plate-Driven
31567	31537-32X23	Plate-Retaining
31567	31537-32X24	Plate-Retaining
31567	31537-32X60	Plate-Retaining
31567	31537-32X61	Plate-Retaining
31567	31537-32X62	Plate-Retaining
31567	31537-32X63	Plate-Retaining
31567	31537-32X64	Plate-Retaining
31567	31537-32X13	Plate-Retaining
31567	31537-32X14	Plate-Retaining
31567	31537-32X15	Plate-Retaining
31567	31537-32X16	Plate-Retaining
31567	31537-32X17	Plate-Retaining
31570	31570-32X08	Clutch Assy-Foward
31571	31571-31X09	Drum Assy-Foward Clutch
31575	31575-31X03	Piston-Foward Clutch
31576	31527-31X02	Seal-Lathe Cut Ring
31576	31527-31X03	Seal-Lathe Cut Ring
31576	31527-31X72	Seal-Lathe Cut Ring
31577	31528-31X02	Seal-Lip
31577	31528-31X03	Seal-Lip
31577	31528-31X07	Seal-Lip
31577	31577-3CX00	Cover-Cancel Force
31582	31521-31X02	Retainer-Spring, Foward Clutch
31584	31584-31X0A	Piston Assy-Overrun Clutch

OEM	Part name	Category
31410-3CX00	High Clutch & Input Shaft Assy	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X03	Ring-Snap, Overrun Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X04	Ring-Snap, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X05	Ring-Snap, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X06	Ring-Snap	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X07	Ring-Snap	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X08	Ring-Snap, Clutch Drum	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X09	Ring-Snap	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31506-31X16	Ring-Snap	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31510-3CX00	Clutch Assy-Reverse	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31511-3CX00	Drum-Reverse Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31514-3CX00	Piston Assy-Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31521-31X02	Retainer-Spring, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31521-3CX00	Retainer-Spring	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31525-31X02	Seal-O Ring	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31527-31X02	Seal-Lathe Cut Ring	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31527-31X03	Seal-Lathe Cut Ring	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31527-31X22	Seal-Lathe Cut Ring	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31527-31X72	Seal-Lathe Cut Ring	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31528-31X02	Seal-Lip	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31528-31X03	Seal-Lip	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31528-31X07	Seal-Lip	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31528-31X11	Seal-Lip	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31532-31X20	Plate Assy-Drive	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31532-31X24	Plate Assy-Drive	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31532-31X60	Plate Assy-Drive	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31532-31X62	Plate Assy-Drive	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31532-3CX00	Plate Assy-Drive	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31535-31X02	Plate-Dished	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31535-31X03	Plate-Dished	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31535-3CX00	Plate-Dished	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31535-3CX01	Plate-Dished	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31536-31X17	Plate-Driven	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31536-31X18	Plate-Driven	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31536-31X19	Plate-Driven	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31536-31X20	Plate-Driven	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31536-31X21	Plate-Driven	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-31X60	Plate-Retaining, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-31X61	Plate-Retaining, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-31X62	Plate-Retaining, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-31X63	Plate-Retaining, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-31X64	Plate-Retaining, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-31X65	Plate-Retaining, Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X13	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X14	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X15	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X16	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X17	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X23	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X24	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X60	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X61	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X62	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X63	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31537-32X64	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31544-3CX00	Piston Assy-High Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31567-31X79	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31567-31X80	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31567-31X81	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31567-31X82	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31567-31X83	Plate-Retaining	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31570-32X08	Clutch Assy-Foward	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31571-31X09	Drum Assy-Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31575-31X03	Piston-Foward Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31577-3CX00	Cover-Cancel Force	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
31584-31X0A	Piston Assy-Overrun Clutch	Clutch & band servo (2006-12-01 ~ ; サーボパーツ; AT.F4)
