VY12

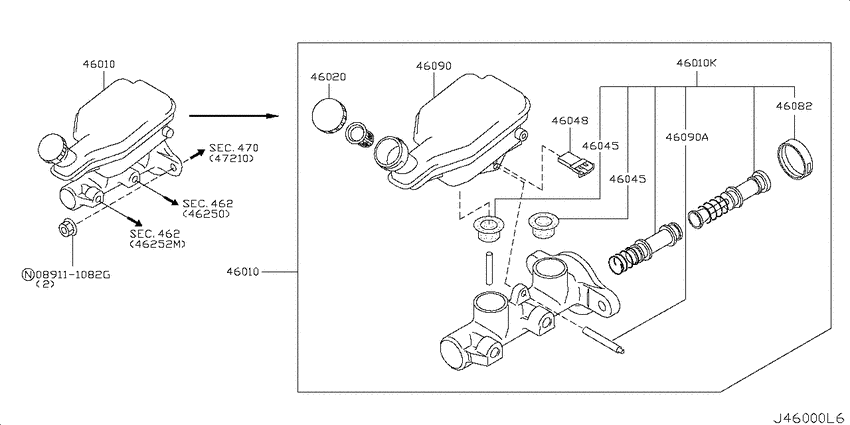

Brake master cylinder (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) 6
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-ED80A | Cylinder Assy-Brake Master |
| 46010 | 46011-ED80J | Piston Kit-Tandem Brake Master Cylinder |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46082 | 46082-01A1A | Ring-Snap |
| 46090 | 46091-ED800 | Tank-Oil Reservoir |
| 46090 | 46037-AD000 | Pin-Spring |
| OEM | Part name | Category |
|---|---|---|
| 46010-ED80A | Cylinder Assy-Brake Master | Brake master cylinder (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) |
| 46011-ED80J | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) |
| 46037-AD000 | Pin-Spring | Brake master cylinder (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) |
| 46082-01A1A | Ring-Snap | Brake master cylinder (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) |
| 46091-ED800 | Tank-Oil Reservoir | Brake master cylinder (2006-12-01 ~ ; CR12DE +HR15DE +MR18DE) |
