Search › Model › VY12
VY12

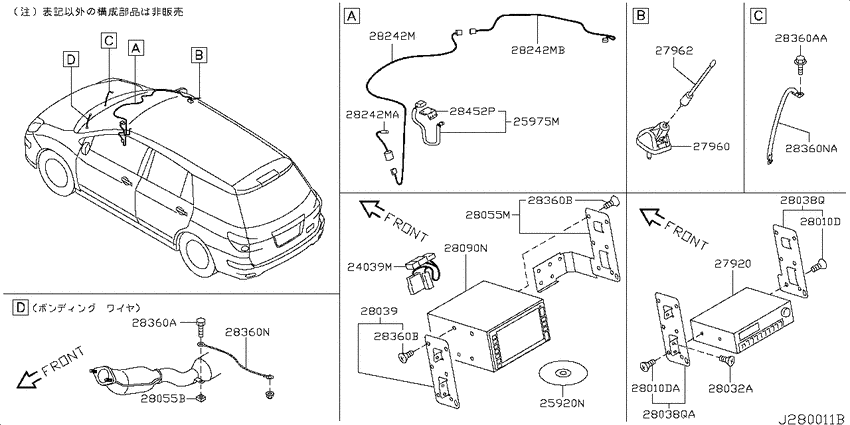

Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) 10
| # | OEM | Part name |
|---|---|---|
| 24039 | 24039-JJ00A | Harn-Navigation, Sub |
| 25920 | 25920-CT06B | Dvd-Rom, Map |
| 25920 | 25920-CT07A | Dvd-Rom, Map |
| 25920 | 25920-VZ00A | Dvd-Rom, Map |
| 27920 | 28013-JJ00A | Radio Unit |
| 28055 | 01225-00691 | NUT |
| 28090 | 28090-CT01A | Display Assy-Navigation |
| 28242 | 28241-JJ01A | Feeder-Antenna |
| 28360 | 28360-ED000 | Wire-Bonding |
| 28360 | 28360-CV000 | Wire-Bonding |
| OEM | Part name | Category |
|---|---|---|
| 01225-00691 | NUT | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 24039-JJ00A | Harn-Navigation, Sub | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 25920-CT06B | Dvd-Rom, Map | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 25920-CT07A | Dvd-Rom, Map | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 25920-VZ00A | Dvd-Rom, Map | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 28013-JJ00A | Radio Unit | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 28090-CT01A | Display Assy-Navigation | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 28241-JJ01A | Feeder-Antenna | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 28360-CV000 | Wire-Bonding | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
| 28360-ED000 | Wire-Bonding | Audio & visual (2006-12-01 ~ ; ｵｰﾃﾞｨｵ ﾊﾟｰﾂ; V) |
