Search › Model › VW11
VW11

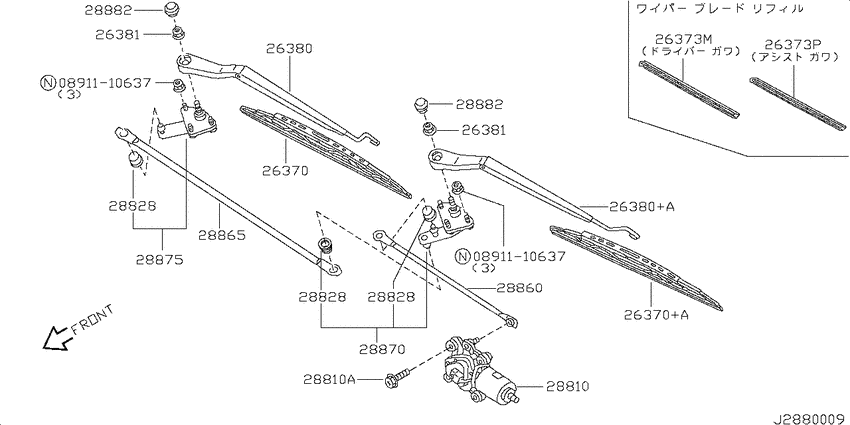

Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) 7
| # | OEM | Part name |
|---|---|---|
| 26381 | 28889-50J00 | Nut-Wiper Arm |
| 28810 | 28810-3J100 | Motor Assy-Windshield Wiper |
| 28810 | 28810-WA600 | Motor Assy-Windshield Wiper |
| 28810 | 01436-00333 | SCREW |
| 28860 | 28841-3J100 | Link Assy-Connecting, No 1 |
| 28865 | 28842-50J0C | Link assy-connecting,no 2 |
| 28870 | 28850-WA000 | Pivot Assy-Wiper, No 1 |
| OEM | Part name | Category |
|---|---|---|
| 01436-00333 | SCREW | Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) |
| 28810-3J100 | Motor Assy-Windshield Wiper | Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) |
| 28810-WA600 | Motor Assy-Windshield Wiper | Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) |
| 28841-3J100 | Link Assy-Connecting, No 1 | Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) |
| 28842-50J0C | Link assy-connecting,no 2 | Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) |
| 28850-WA000 | Pivot Assy-Wiper, No 1 | Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) |
| 28889-50J00 | Nut-Wiper Arm | Windshield wiper (1999-06-01 ~ 2005-12-01; ﾌﾛﾝﾄﾜｲﾊﾟｰ; V) |
