Search › Model › VW11
VW11

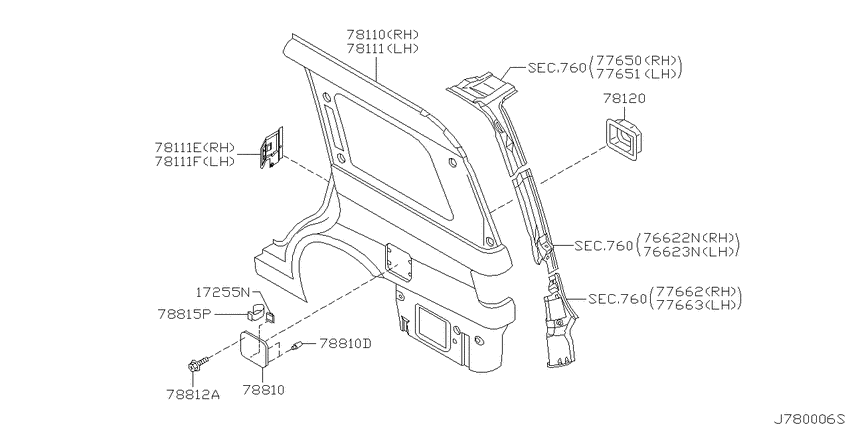

Rear fender & fitting (2005-12-01 ~ ; V) 6
| # | OEM | Part name |
|---|---|---|
| 17255 | 17255-79900 | Holder-Filler Cap |
| 78110 | 78112-WA060 | Fender-Rear, Rh |
| 78111 | 76590-WA000 | Retainer-Tapping, Striker Rh |
| 78120 | 78120-WA000 | Base-Filler Lid |
| 78810 | 78830-WA000 | Lid-Gas Filler |
| 78812 | 01416-00033 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01416-00033 | SCREW | Rear fender & fitting (2005-12-01 ~ ; V) |
| 17255-79900 | Holder-Filler Cap | Rear fender & fitting (2005-12-01 ~ ; V) |
| 76590-WA000 | Retainer-Tapping, Striker Rh | Rear fender & fitting (2005-12-01 ~ ; V) |
| 78112-WA060 | Fender-Rear, Rh | Rear fender & fitting (2005-12-01 ~ ; V) |
| 78120-WA000 | Base-Filler Lid | Rear fender & fitting (2005-12-01 ~ ; V) |
| 78830-WA000 | Lid-Gas Filler | Rear fender & fitting (2005-12-01 ~ ; V) |
