VW11

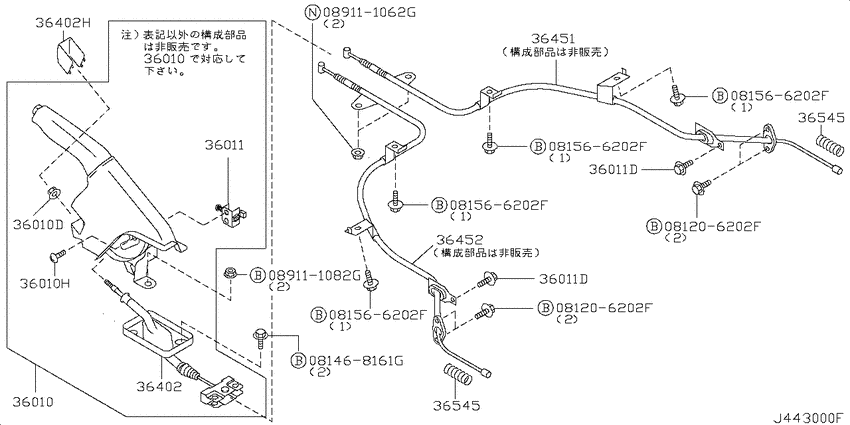

Parking brake control (2005-12-01 ~ ; QG18DE) 8
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-WA000 | Device Assy-Parking Brake Control |
| 36011 | 36011-4E100 | SWITCH ASSY-PARKING BRAKE LAMP |
| 36011 | 36011-50Y00 | Switch Assy-Parking Brake Lamp |
| 36402 | 36402-WA000 | Cable Assy-Parking Brake, Front |
| 36402 | 36317-2J010 | Cap-Adjust |
| 36451 | 36530-WA000 | Cable Assy-Brake, Rear Rh |
| 36452 | 36531-WA000 | Cable Assy-Brake, Rear Lh |
| 36545 | 36545-U8702 | Spring |
| OEM | Part name | Category |
|---|---|---|
| 36010-WA000 | Device Assy-Parking Brake Control | Parking brake control (2005-12-01 ~ ; QG18DE) |
| 36011-4E100 | SWITCH ASSY-PARKING BRAKE LAMP | Parking brake control (2005-12-01 ~ ; QG18DE) |
| 36011-50Y00 | Switch Assy-Parking Brake Lamp | Parking brake control (2005-12-01 ~ ; QG18DE) |
| 36317-2J010 | Cap-Adjust | Parking brake control (2005-12-01 ~ ; QG18DE) |
| 36402-WA000 | Cable Assy-Parking Brake, Front | Parking brake control (2005-12-01 ~ ; QG18DE) |
| 36530-WA000 | Cable Assy-Brake, Rear Rh | Parking brake control (2005-12-01 ~ ; QG18DE) |
| 36531-WA000 | Cable Assy-Brake, Rear Lh | Parking brake control (2005-12-01 ~ ; QG18DE) |
| 36545-U8702 | Spring | Parking brake control (2005-12-01 ~ ; QG18DE) |
