Search › Model › VW11
VW11

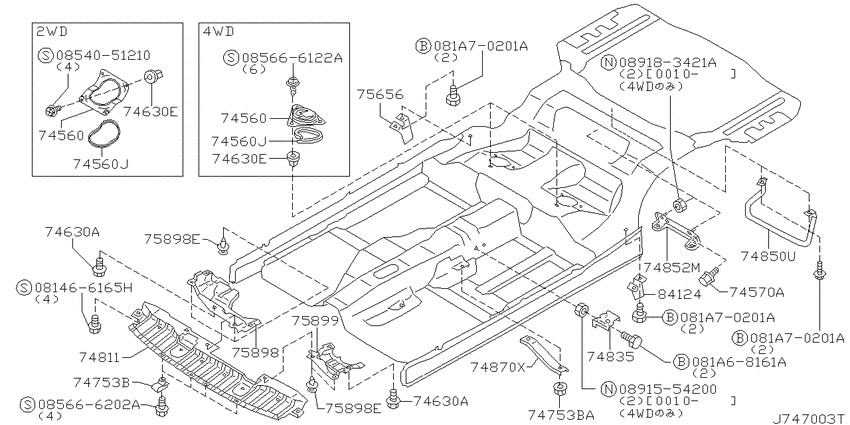

Floor fitting (2000-01-01 ~ 2002-08-01; V) 12
| # | OEM | Part name |
|---|---|---|
| 74560 | 74845-WA000 | Cover-Inspection Hole |
| 74560 | 74847-WA000 | Seal-Inspection Hole Cover |
| 74570 | 01121-01191 | BOLT |
| 74753 | 64193-WA000 | Nut |
| 74811 | 75892-WA000 | Cover-Engine, Lower |
| 74835 | 74835-WA000 | Bracket-Front Seat Mounting Lh |
| 74850 | 74850-WD100 | Protector-Rear Axle |
| 74852 | 74852-WD100 | Bracket-Diff Mounting, Front |
| 75656 | 75698-WA000 | Bracket-Fuel Tank Mounting, Rh |
| 75898 | 01553-05933 | CLIP |
| 84124 | 75699-WA000 | Bracket-Fuel Tank Mounting |
| 854051210 | 08540-51210 | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 01121-01191 | BOLT | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 01553-05933 | CLIP | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 08540-51210 | スクリユ-,タツピング | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 64193-WA000 | Nut | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 74835-WA000 | Bracket-Front Seat Mounting Lh | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 74845-WA000 | Cover-Inspection Hole | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 74847-WA000 | Seal-Inspection Hole Cover | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 74850-WD100 | Protector-Rear Axle | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 74852-WD100 | Bracket-Diff Mounting, Front | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 75698-WA000 | Bracket-Fuel Tank Mounting, Rh | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 75699-WA000 | Bracket-Fuel Tank Mounting | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
| 75892-WA000 | Cover-Engine, Lower | Floor fitting (2000-01-01 ~ 2002-08-01; V) |
