Search › Model › VW11

VW11

Nissan WINGROAD-AD-EXPERT · 1999 · 2,980 parts · 487 categories

2,980 items

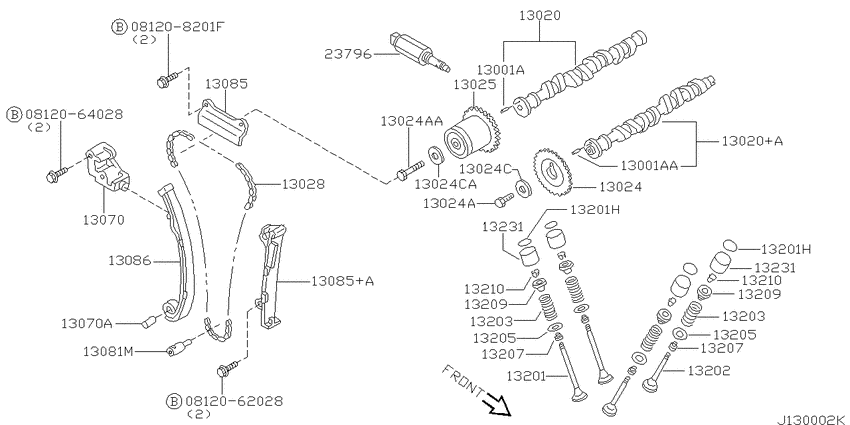

Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE) 67

#	OEM	Part name
13001	13004-57Y00	Dowel-Camshaft
13020	13020-4M700	Camshaft Assy
13020	13020-4M510	Camshaft Assy
13020	13020-8N210	Camshaft Assy
13024	13012-4M500	Bolt-Sprocket, Camshaft
13024	13012-4M501	Bolt-Sprocket, Camshaft
13024	13012-57Y00	Bolt-Sprocket, Camshaft
13024	13013-53Y00	Washer-Plain
13024	13013-57Y00	Washer-Plain
13025	13025-AU000	Sprocket-Camshaft, Intake
13028	13028-4M502	Chain-Timing Camshaft
13028	13028-4M511	Chain-Timing Camshaft
13028	13028-4M512	Chain-Timing Camshaft
13070	13094-4M500	Bolt
13201	13201-4M700	Valve-Intake
13201	13229-50C00	Shim-Valve
13201	13229-50C01	Shim-Valve
13201	13229-50C02	Shim-Valve
13201	13229-50C03	Shim-Valve
13201	13229-50C04	Shim-Valve
13201	13229-50C05	Shim-Valve
13201	13229-50C06	Shim-Valve
13201	13229-50Y00	Shim-Valve
13201	13229-50Y01	Shim-Valve
13201	13229-50Y02	Shim-Valve
13201	13229-50Y04	Shim-Valve
13201	13229-50Y05	Shim-Valve
13201	13229-50Y09	Shim-Valve
13201	13229-50Y10	Shim-Valve
13201	13229-50Y12	Shim-Valve
13201	13229-50Y14	Shim-Valve
13201	13229-50Y15	Shim-Valve
13201	13229-50Y17	Shim-Valve
13201	13229-53Y13	Shim-Valve
13201	13229-50Y19	Shim-Valve
13201	13229-53Y19	Shim-Valve
13201	13229-50Y20	Shim-Valve
13201	13229-53Y20	Shim-Valve
13201	13229-53Y21	Shim-Valve
13201	13229-53Y22	Shim-Valve
13201	13229-53Y23	Shim-Valve
13201	13229-53Y24	Shim-Valve
13201	13229-50Y60	Shim-Valve
13201	13229-50Y64	Shim-Valve
13201	13229-50Y66	Shim-Valve
13201	13229-50Y67	Shim-Valve
13201	13229-50Y70	Shim-Valve
13201	13229-53Y71	Shim-Valve
13201	13229-50Y72	Shim-Valve
13201	13229-50Y73	Shim-Valve
13201	13229-50Y74	Shim-Valve
13201	13229-50Y75	Shim-Valve
13201	13229-50Y76	Shim-Valve
13201	13229-50Y77	Shim-Valve
13202	13202-0M600	Valve-Exhaust
13203	13203-53Y00	Spring-Valve, Outer
13203	13203-53Y10	Spring-Valve, Outer
13205	13205-53Y00	Seat-Valve Spring, Outer
13207	13207-53Y10	Seal-Oil, Valve
13209	13209-53Y00	Retainer-valve spring
13210	13210-53Y00	Collet-Valve Spring
13231	13231-53Y11	Lifter-Valve
13231	13231-31U00	Lifter-Valve
23796	23796-4M700	Valve Assy-Solenoid, Valve Timing Control
23796	23796-AU000	Valve Assy-Solenoid, Valve Timing Control
23796	23796-AU00A	Valve Assy-Solenoid, Valve Timing Control
812062028	08120-62028	Bolt-hexagon

OEM	Part name	Category
08120-62028	Bolt-hexagon	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13004-57Y00	Dowel-Camshaft	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13012-4M500	Bolt-Sprocket, Camshaft	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13012-4M501	Bolt-Sprocket, Camshaft	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13012-57Y00	Bolt-Sprocket, Camshaft	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13013-53Y00	Washer-Plain	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13013-57Y00	Washer-Plain	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13020-4M510	Camshaft Assy	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13020-4M700	Camshaft Assy	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13020-8N210	Camshaft Assy	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13025-AU000	Sprocket-Camshaft, Intake	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13028-4M502	Chain-Timing Camshaft	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13028-4M511	Chain-Timing Camshaft	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13028-4M512	Chain-Timing Camshaft	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13094-4M500	Bolt	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13201-4M700	Valve-Intake	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13202-0M600	Valve-Exhaust	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13203-53Y00	Spring-Valve, Outer	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13203-53Y10	Spring-Valve, Outer	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13205-53Y00	Seat-Valve Spring, Outer	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13207-53Y10	Seal-Oil, Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13209-53Y00	Retainer-valve spring	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13210-53Y00	Collet-Valve Spring	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50C00	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50C01	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50C02	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50C03	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50C04	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50C05	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50C06	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y00	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y01	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y02	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y04	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y05	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y09	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y10	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y12	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y14	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y15	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y17	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y19	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y20	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y60	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y64	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y66	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y67	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y70	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y72	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y73	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y74	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y75	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y76	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-50Y77	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y13	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y19	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y20	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y21	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y22	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y23	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y24	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13229-53Y71	Shim-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13231-31U00	Lifter-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
13231-53Y11	Lifter-Valve	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
23796-4M700	Valve Assy-Solenoid, Valve Timing Control	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
23796-AU000	Valve Assy-Solenoid, Valve Timing Control	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
23796-AU00A	Valve Assy-Solenoid, Valve Timing Control	Camshaft & valve mechanism (1999-06-01 ~ 2002-08-01; カムシャフト&バルブメカニズム; QG18DE)
