Search › Model › VG45

VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories

7,453 items

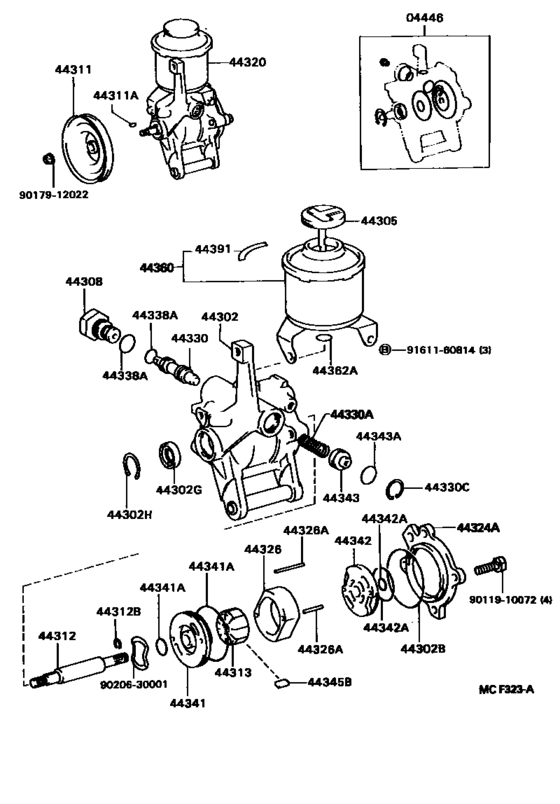

Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- )) 69

#	OEM	Part name
4446	04446-30090	Gasket Kit, Power Steering Pump
4446	04446-40011	Gasket Kit, Power Steering Pump
44302	44302-40011	Housing Sub-Assy, Vane Pump, Front
44302	90301-63002	Ring, O, No.1(For Vane Pump Housing)
44302	90311-18008	Seal, Oil, No.2(For Vane Pump Housing)
44302	90521-32001	Ring, Snap, No.1(For Vane Pump Housing)
44305	44305-30040	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-40010	Union Sub-Assy, Pressure Port
44311	44311-40030	Pulley, Vane Pump
44311	44311-40040	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12020	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-32010	Rotor, Vane Pump
44313	44313-32020	Rotor, Vane Pump
44313	44313-32030	Rotor, Vane Pump
44313	44313-32040	Rotor, Vane Pump
44313	44313-32050	Rotor, Vane Pump
44320	44320-40060	Pump Assy, Vane
44324	44324-40010	Housing, Pump, Rear
44326	44325-22020	Ring, Cam(For Vane Pump)
44326	44325-22030	Ring, Cam(For Vane Pump)
44326	44325-22040	Ring, Cam(For Vane Pump)
44326	44325-22050	Ring, Cam(For Vane Pump)
44326	44325-22060	Ring, Cam(For Vane Pump)
44326	90250-05008	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-05017	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-32130	Valve Assy, Flow Control
44330	44330-32670	Valve Assy, Flow Control
44330	44330-32140	Valve Assy, Flow Control
44330	44330-32680	Valve Assy, Flow Control
44330	44330-32150	Valve Assy, Flow Control
44330	44330-32690	Valve Assy, Flow Control
44330	44330-32160	Valve Assy, Flow Control
44330	44330-32700	Valve Assy, Flow Control
44330	44330-32170	Valve Assy, Flow Control
44330	44330-32710	Valve Assy, Flow Control
44330	44330-32180	Valve Assy, Flow Control
44330	44330-32720	Valve Assy, Flow Control
44330	44330-40010	Valve Assy, Flow Control
44330	44330-40020	Valve Assy, Flow Control
44330	44330-40030	Valve Assy, Flow Control
44330	44330-40040	Valve Assy, Flow Control
44330	44330-40050	Valve Assy, Flow Control
44330	44330-40060	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-02200	Ring(For Clutch Master Cylinder Reservoir)
44338	90301-22001	Ring, O(For Pressure Port Union)
44338	96711-19014	O-Ring
44341	44341-30030	Plate, Vane Pump Side, Front
44341	90301-21001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-56002	Ring, O(For Vane Pump Front Side Plate)
44342	44342-30020	Plate, Vane Pump Side, Rear
44342	90301-13004	Ring, O(For Vane Pump Side Plate Rear)
44342	90301-30004	Ring, O(For Vane Pump Side Plate Rear)
44343	44343-12030	Seat, Flow Control Spring
44343	96711-19019	Ring, O(For Vane Pump Union)
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44306-40040	Reservoir Assy, Vane Pump Oil
44362	96711-19013	Ring, O(For Power Steering Suction Port)
44391	44391-14010	Plate, Power Steering Oil Reservoir Caution
9011910072	90119-10072	New Genuine Part
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630001	90206-30001	New Genuine Part
9161160814	91611-60814	Bolt

OEM	Part name	Category
04446-30090	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
04446-40011	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44302-40011	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44305-30040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44306-40040	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44308-40010	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44311-40030	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44311-40040	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44312-12020	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44313-32010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44313-32020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44313-32030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44313-32040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44313-32050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44320-40060	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44324-40010	Housing, Pump, Rear	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44325-22020	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44325-22030	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44325-22040	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44325-22050	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44325-22060	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32130	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32140	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32150	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32160	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32170	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32180	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32670	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32680	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32690	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32700	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32710	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-32720	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-40010	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-40020	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-40030	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-40040	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-40050	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44330-40060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44341-30030	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44342-30020	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44343-12030	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
44391-14010	Plate, Power Steering Oil Reservoir Caution	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90119-10072	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90206-30001	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90250-05008	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90250-05017	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90301-13004	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90301-21001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90301-22001	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90301-30004	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90301-56002	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90301-63002	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90311-18008	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
90521-32001	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
96151-02200	Ring(For Clutch Master Cylinder Reservoir)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
96711-19013	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
96711-19019	Ring, O(For Vane Pump Union)	Vane Pump & Reservoir (Power Steering) ([09.1987 - ] (8709- ))
