VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories
VG45 ×

← Back to categories

7,453 items

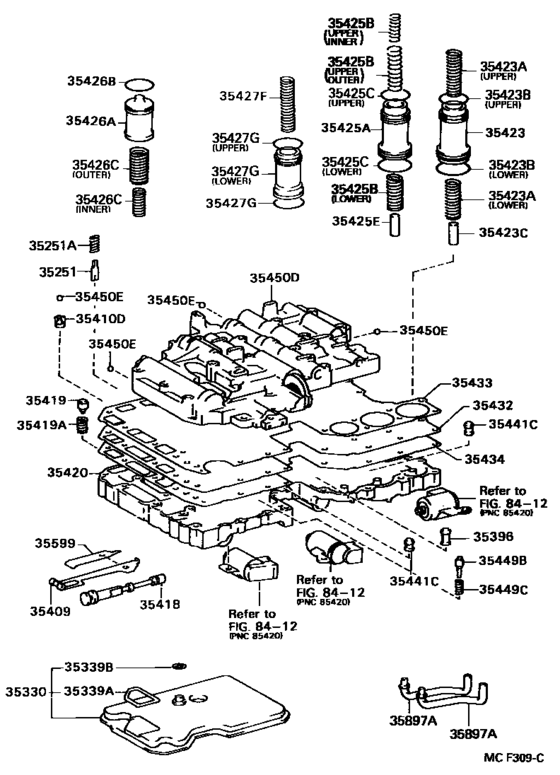

Valve Body & Oil Strainer (Atm) ([09.1987 - 12.1992] A340E (8709-9212)) 139
#OEMPart name
35218 35218-40010 Plug, Lock Up Relay Valve
35218 35218-40020 Plug, Lock Up Relay Valve
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35330 35330-30011 Strainer Assy, Valve Body Oil
35330 35330-50010 Strainer Assy, Valve Body Oil
35339 35339-30070 Gasket, Oil Strainer, No.1
35339 90430-10010 Gasket, Oil Strainer, No.2
35396 35396-30010 Strainer, Throttle Oil
35409 35409-30020 Spring Sub-Assy, Manual Detent
35410 90917-10073 Valve, Check
35415 35415-30030 Valve, Primary Regulator
35415 35415-50010 Valve, Primary Regulator
35415 90501-14117 Spring, Compression (For Primary Regulator Valve)
35415 90501-16077 Spring, Compression (For Lock Up Relay Valve)
35415 90201-08021 Washer, Plate (For Pressure Regulator Valve)
35415 90201-08067 Washer (For Primary Regulator Valve)
35416 35416-30040 Plunger, Primary Regulator Valve, No.1
35416 35416-50010 Plunger, Primary Regulator Valve, No.1
35417 35417-30060 Sleeve, Primary Regulator Valve
35417 35417-50011 Sleeve, Primary Regulator Valve
35418 35418-30070 Valve, Manual
35418 35418-50010 Valve, Manual
35419 35419-12030 Valve, Check, No.1
35419 90501-09093 Spring, Compression (For Check Valve)
35419 90501-11039 Spring, Compression (For Check Valve)
35420 35420-14143 Body Assy, Lower Valve
35420 35420-40030 Body Assy, Lower Valve
35422 35422-30010 Stopper, Valve Vibrating
35423 35423-30030 Piston, B-2 Accumulator
35423 90501-25028 Spring, Compression (For B-2 Accumulator Piston)
35423 90501-35010 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-23194 Ring, O (For Low Speed Brake Accumulator Piston)
35423 90301-31002 Ring, O (For Low Speed Brake Accumulator Cover)
35423 90301-31010 Ring, O (For B-2 Accumulator Piston)
35425 35425-30020 Piston, C-2 Accumulator
35425 90501-21010 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-22015 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-25027 Spring, Compression (For C-2 Accumulator Piston)
35425 90501-28013 Spring, Compression (For C-2 Accumulator Piston)
35425 90301-25003 Ring, O (For C-2 Accumulator Piston)
35425 90301-25010 Ring, O(For Oil Pump Suction Pipe)
35426 35426-40010 Piston, C-0 Accumulator
35426 35426-50010 Piston, C-0 Accumulator
35426 90301-24001 Ring, O (For C-0 Accumulator Piston)
35426 90301-24010 Ring, O (For C-0 Accumulator Piston)
35426 90501-20112 Spring, Compression (For C-0 Accumulator Piston)
35426 90501-20113 Spring, Compression (For C-0 Accumulator Piston)
35426 90501-21021 Spring, Compression (For C-0 Accumulator Piston)
35426 90501-22008 Spring, Compression (For C-2 Accumulator Piston)
35426 90501-23073 Spring, Compression (For C-0 Accumulator Piston)
35427 90501-21006 Spring, Compression (For B-0 Accumulator Piston)
35427 90501-22019 Spring, Compression (For C-2 Accumulator Piston)
35427 90301-20002 Ring, O (For C-3 Accumulator Piston)
35427 90301-26002 Ring, O (For B-0 Accumulator Piston)
35427 90301-26011 Ring, O (For C-3 Accumulator Piston)
35428 35428-30010 Plug, Pressure Reducing
35428 90468-05068 Clip (For Pressure Reducing Plug)
35432 35432-40060 Plate, Valve Body, No.1
35433 35433-30064 Gasket, Valve Body, No.1
35434 35434-30076 Gasket, Valve Body, No.2
35438 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35441 35441-30020 Strainer, Solenoid Oil
35441 35441-30031 Strainer, Solenoid Oil
35441 35441-50010 Strainer, Solenoid Oil
35441 35441-50030 Strainer, Solenoid Oil
35444 35444-30020 Valve, Release Control
35445 35445-30011 Valve, 2Nd Coast Modulator
35445 35445-50010 Valve, Low Modulator
35445 90339-04002 Plug(For Low-High Shift Valve)
35445 90501-10165 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-10166 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-10167 Spring, Compression (For 2Nd Coast Modulator Valve)
35445 90501-11026 Spring, Compression (For Low Modulator Valve)
35445 90501-07100 Spring, Compression (For Low Coast Modulator Valve)
35445 90501-08066 Spring, Compression (For Low Coast Modulator Valve)
35449 35449-32010 Valve, Pressure Relief
35449 90501-09032 Spring, Compression (For Valve Pressure Relief)
35450 35450-40030 Body Assy, Upper Valve
35450 35450-40040 Body Assy, Upper Valve
35450 35495-22020 Ball (For Transfer Upper Valve Body)
35450 35496-22030 Ball (For Lower Valve Body)
35450 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35450 90080-36191 Ball, Check Valve
35456 35456-30060 Valve, 2-3 Shift
35456 90501-09053 Spring, Compression (For 2-3 Shift Valve)
35456 90339-05014 Plug, Low-High Signal Valve
35456 35493-22020 Seat, Plug (For Lock Up Relay Valve)
35456 90282-03016 Key, Straight (For Lock Up Relay Valve Plug)
35458 35458-30030 Valve, Cut Back
35458 35458-50010 Valve, Cut Back
35458 90339-04030 Plug (For Solenoid Modulator Valve)
35458 90501-06026 Spring, Compression (For Cut Back Valve)
35458 90501-06055 Spring, Compression (For Solenoid Relay Valve)
35458 90282-03003 Key, Straight (For Lock Up Signal Valve)
35461 35408-30040 Plug Sub-Assy, Throttle Valve
35461 90501-10119 Spring, Compression (For Throttle Valve Plug)
35461 90250-03045 Pin, Straight (For Line Pressure Contorol Solenoid)
35462 35462-30020 Valve, Throttle
35462 35462-50010 Valve, Throttle
35462 90501-07051 Spring, Compression (For Throttle Valve)
35462 90501-07067 Spring, Compression (For Throttle Valve)
35462 90504-06002 Spring, Compression (For Throttle Valve)
35462 90523-06023 Ring, E (For Throttle Valve)
35464 35464-12030 Valve, 1-2 Shift
35468 35468-12020 Valve, Secondary Regulator
35468 35468-50010 Valve, Secondary Regulator
35468 90501-12122 Spring, Compression (For Secondary Regulator Valve)
35468 90501-15007 Spring, Compression (For Secondary Regulator Valve)
35468 90339-05020 Plug (For Reverse Control Valve)
35491 35491-30020 Valve, Accumulator Control, No.1
35491 35491-50010 Valve, Accumulator Control, No.1
35491 90501-08096 Spring, Compression (For Accumulator Control Valve No.1)
35491 90501-11049 Spring, Compression (For Accumulator Control Valve No.1)
35492 35492-30030 Sleeve, Accumulator Control Valve
35492 35492-50010 Sleeve, Accumulator Control Valve
35493 35493-30090 Seat, Shift Valve Plug, No.3
35493 35493-30080 Seat, 1-2 Shift Valve Plug
35493 35493-30020 Seat, Valve (For Overdrive Clutch Exhaust Valve)
35493 35493-50010 Seat, Primary Regulator Valve Plug
35497 35497-30040 Valve, 3-4 Shift
35521 35521-22060 Cam, Throttle Valve
35521 35521-50010 Cam, Throttle Valve
35521 90508-10059 Spring (For Throttle Valve Cam Return)
35521 90508-11007 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35521 90105-06018 Bolt (For Throttle Valve Cam Set)
35522 35522-22010 Pin, Throttle Valve Cam
35599 35599-30020 Cover, Manual Detent Spring
35897 35897-30020 Tube, 1St & Reverse Brake
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505008 90105-05008 New Genuine Part
9010505031 90105-05031 New Genuine Part
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
9010506075 90105-06075 New Genuine Part
9010506075 91511-C0622 Strainer Bolt
9010506076 90105-06076 Bolt (For Throttle Valve Cam Set)
