Search › Model › VG45

VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories

7,453 items

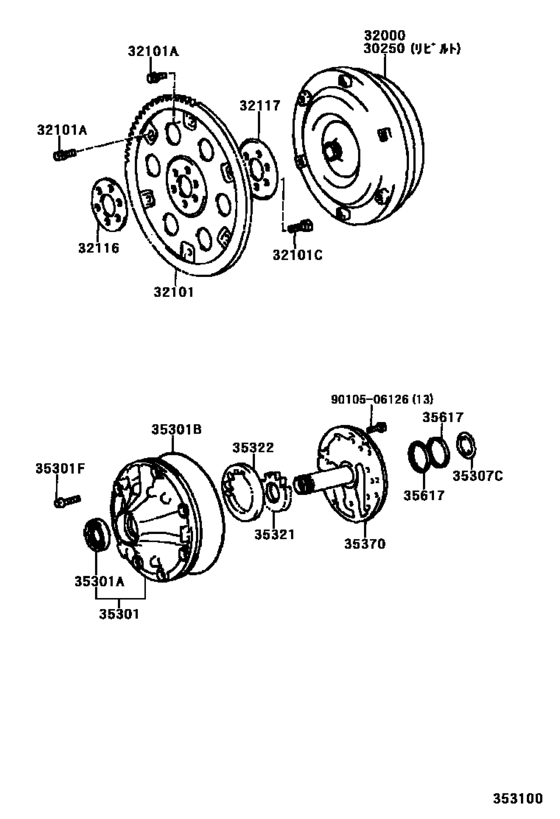

Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- )) 29

#	OEM	Part name
30250	30250-40070	Converter Assy, Torque, Rebuilt
30250	30250-40080	Converter Assy, Torque, Rebuilt
32000	32000-40070	Converter Assy, Torque
32000	32000-40080	Converter Assy, Torque
32101	32101-40030	Gear Sub-Assy, Drive Plate & Ring
32101	90119-08269	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-12030	Bolt, Hexagon(For Drive Plate Setting)
32116	32116-40010	Spacer, Drive Plate, Front
32117	32117-40010	Spacer, Drive Plate, Rear
35301	35301-35010	Body Sub-Assy, Front Oil Pump
35301	90311-38029	Seal, Oil (For Front Oil Pump)
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99033	Ring, O (For Front Oil Pump Body)
35301	90105-08091	Bolt (For Front Oil Pump Setting)
35307	35789-30020	Race, Thrust Bearing (For Stator Shaft)
35307	35789-30340	Race, Thrust Bearing (For Stator Shaft)
35321	35321-12020	Gear, Front Oil Pump Drive
35321	35321-12030	Gear, Front Oil Pump Drive
35321	35321-12040	Gear, Front Oil Pump Drive
35321	35321-12050	Gear, Front Oil Pump Drive
35321	35321-12060	Gear, Front Oil Pump Drive
35322	35322-12010	Gear, Front Oil Pump Driven
35322	35322-12020	Gear, Front Oil Pump Driven
35322	35322-12030	Gear, Front Oil Pump Driven
35322	35322-12040	Gear, Front Oil Pump Driven
35322	35322-12050	Gear, Front Oil Pump Driven
35370	35370-50010	Shaft Assy, Stator
35617	35617-30020	Ring, Clutch Drum Oil Seal
9010506126	90105-06126	Bolt (For Stator Shaft)

OEM	Part name	Category
30250-40070	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
30250-40080	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
32000-40070	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
32000-40080	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
32101-40030	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
32116-40010	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
32117-40010	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35301-35010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35321-12020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35321-12030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35321-12040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35321-12050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35321-12060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35322-12010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35322-12020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35322-12030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35322-12040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35322-12050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35370-50010	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35617-30020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35789-30020	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
35789-30340	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
90105-06126	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
90105-08091	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
90105-12030	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
90119-08269	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
90301-99033	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
90311-38029	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([09.1987 - ] A340E (8709- ))
