VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories

← Back to categories

7,453 items

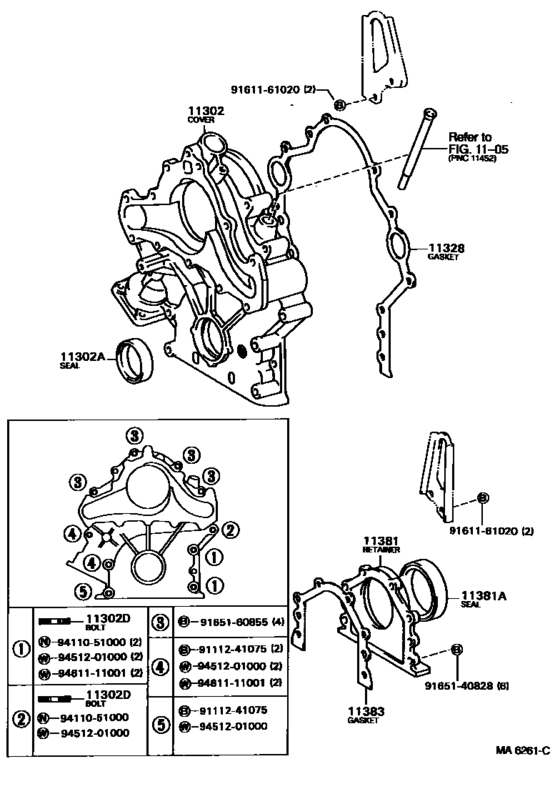

Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- )) 19

#	OEM	Part name
11302	11321-52020	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-45011	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-45014	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90116-10072	Bolt, Stud(For Timing Gear Cover)
11328	11328-51012	Gasket, Timing Gear Or Chain Cover
11381	11381-51010	Retainer, Engine Rear Oil Seal
11381	90311-85001	Seal, Engine Rear Oil
11381	90311-85009	Seal, Engine Rear Oil
11381	90311-85006	Seal, Engine Rear Oil
11383	11383-51010	Gasket, Engine Rear Oil Seal Retainer
9111241075	91112-41075	New Genuine Part
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165140828	91651-40828	New Genuine Part
9165160855	91651-60855	BOLT
9411051000	94110-51000	Nut(For Steering Center Arm)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461111001	94611-11001	Plate, Rear Seat Back Stopper

OEM	Part name	Category
11321-52020	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
11328-51012	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
11381-51010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
11383-51010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
90116-10072	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
90311-45011	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
90311-45014	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
90311-85001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
90311-85006	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
90311-85009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
91112-41075	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
91611-61020	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
91651-40828	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
91651-60855	BOLT	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
94110-51000	Nut(For Steering Center Arm)	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))
94611-11001	Plate, Rear Seat Back Stopper	Timing Gear Cover & Rear End Plate ([09.1987 - ] (8709- ))

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 231
Collected: 2026-08-02
