Search › Model › VG45

VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories
VG45 ×

← Back to categories

7,453 items

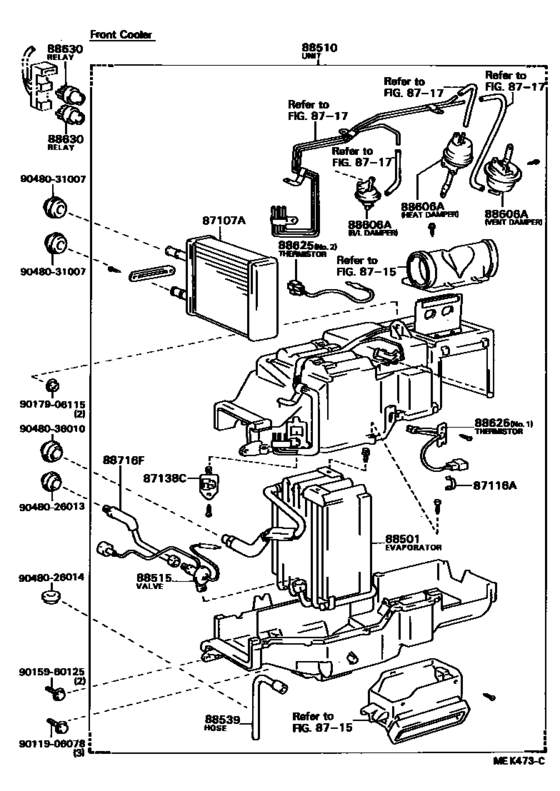

Heating & Air Conditioning - Cooler Unit ([09.1987 - ] (8709- )) 95
#OEMPart name
87107 87107-40060 Unit Sub-Assy, Heater Radiator
87107 87107-40070 Unit Sub-Assy, Heater Radiator
87107 87107-40061 Unit Sub-Assy, Heater Radiator
87107 87107-40071 Unit Sub-Assy, Heater Radiator
87116 87116-14010 Spring, Heater Case Fastening
87138 87138-40012 Resistor, Blower
87138 87138-40020 Resistor, Blower
88306 90980-04035 Filter, Noise
88482 88482-30250 Cap, Cooler
88501 88501-30540 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40050 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40051 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40060 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40070 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40080 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40090 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40100 Evaporator Sub-Assy, Cooler, No.1
88501 88501-40110 Evaporator Sub-Assy, Cooler, No.1
88510 88510-40083 Unit Assy, Cooler
88510 88510-40110 Unit Assy, Cooler
88510 88510-40140 Unit Assy, Cooler
88510 88510-40150 Unit Assy, Cooler
88510 88510-40160 Unit Assy, Cooler
88510 88510-40170 Unit Assy, Cooler
88510 88510-40180 Unit Assy, Cooler
88510 88510-40190 Unit Assy, Cooler
88515 88515-14070 Valve, Cooler Expansion
88515 88515-14071 Valve, Cooler Expansion
88515 88515-22070 Valve, Cooler Expansion
88515 88515-22071 Valve, Cooler Expansion
88515 88515-30310 Valve, Cooler Expansion
88515 88515-40060 Valve, Cooler Expansion
88515 88515-40070 Valve, Cooler Expansion
88515 88515-40080 Valve, Cooler Expansion
88515 88515-50050 Valve, Cooler Expansion
88536 88536-40010 Bracket, Cooling Unit, No.1
88539 88539-40050 Hose, Cooler Unit Drain, No.1
88539 88539-40070 Hose, Cooler Unit Drain, No.1
88541 88541-30270 Fan, Cooler Blower, No.1
88550 88550-91701 Motor Sub-Assy, Cooler Blower, No.1
88560 88561-30300-11 Grille Assy, Cooler Air Inlet
88560 88561-30300-22 Grille Assy, Cooler Air Inlet
88560 88561-30300-34 Grille Assy, Cooler Air Inlet
88560 88561-30300-B0 Grille Assy, Cooler Air Inlet
88560 88561-30300-E2 Grille Assy, Cooler Air Inlet
88566 88566-40090 Duct, Cooler Air, No.1
88566 88566-40100 Duct, Cooler Air, No.1
88570 88570-30620-01 Grille Sub-Assy, Cooler Air Outlet
88570 88570-30620-12 Grille Sub-Assy, Cooler Air Outlet
88570 88570-30620-14 Grille Sub-Assy, Cooler Air Outlet
88570 88570-30620-23 Grille Sub-Assy, Cooler Air Outlet
88570 88570-30620-B0 Grille Sub-Assy, Cooler Air Outlet
88570 88570-30620-E0 Grille Sub-Assy, Cooler Air Outlet
88573 88573-30490 Base, Grille
88576 88576-30680 Guide, Cooler Air
88605 88605-40100 Harness Sub-Assy, Cooler Wiring, No.1
88605 88608-40020 Harness Sub-Assy, Cooler Wiring, No.1
88605 88608-40040 Harness Sub-Assy, Cooler Wiring, No.1
88605 88608-40050 Harness Sub-Assy, Cooler Wiring, No.1
88605 88608-40060 Harness Sub-Assy, Cooler Wiring, No.1
88605 88608-40070 Harness Sub-Assy, Cooler Wiring, No.1
88606 87108-30300 Diaphragm Sub-Assy, Ventilator Door Control
88606 87108-30310 Diaphragm Sub-Assy, Heater Door Control
88606 87108-40040 Diaphragm Sub-Assy, Cooler
88606 87108-40050 Diaphragm Sub-Assy, Cooler
88625 88625-12070 Thermistor, Cooler, No.1
88625 88625-22160 Thermistor, Cooler, No.1
88625 88790-40010 Thermistor, Cooler, No.1
88630 90987-02004 Relay Assy, Starter
88690 88691-30440 Valve Assy, Cooler Magnet
88690 88691-40060 Valve Assy, Cooler Magnet
88690 88691-40100 Valve Assy, Cooler Magnet
88716 88716-40290 Pipe, Cooler Refrigerant Liquid, F
88716 88716-40350 Pipe, Cooler Refrigerant Liquid, F
88716 88716-40550 Pipe, Cooler Refrigerant Liquid, F
88716 88716-91411 Pipe, Cooler Refrigerant Liquid, F
88750 88750-40010 Transistor Assy, Blower Resistor
88920 88920-40030 Purifier Assy, Air
88926 88926-40010 Filter, Air Purifier, No.1
8856930490 88569-30490 Clamp (for Cooler Relay)
9011906042 90119-06042 New Genuine Part
9011906042 90119-06341 BOLT
9011906078 90119-06078 New Genuine Part
9011906078 90119-06330 Bolt
9015960125 90159-60125 New Genuine Part
9015960125 90159-60383 SCREW WWASHER
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9048026013 90480-26013 New Genuine Part
9048026014 90480-26014 GROMMET
9048031007 90480-31007 Grommet, Heater Hose
9048036010 90480-36010 Grommet (For Cooler Unit)
9165140614 91651-40614 Bolt
9354014012 93540-14012 Screw
9354014016 93540-14016 SCREW
9354054020 93540-54020 New Genuine Part
