VG45

Toyota CENTURY · 1990 · 7,453 parts · 231 categories
VG45 ×

← Back to categories

7,453 items

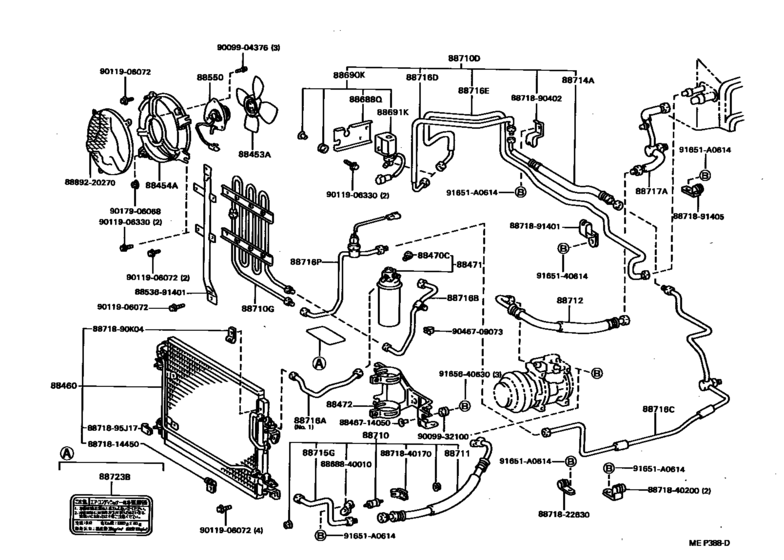

Heating & Air Conditioning - Cooler Piping ([09.1990 - 12.1992] ﾘﾑｼﾞﾝ S,H (8910-9009)4HC..E ; (9009-9212)VG45..4HC) 93
#OEMPart name
88453 88453-20030 Fan, Cooling (For Condenser)
88454 88454-91401 Shroud, Fan
88460 88460-40040 Condenser Assy, Cooler
88460 88460-40060 Condenser Assy, Cooler
88460 88460-40070 Condenser Assy, Cooler
88460 88460-91401 Condenser Assy, Cooler
88470 88475-12020 Bolt, Fuse
88471 88471-40010 Tank, Receiver Air Conditioner
88471 88471-40070 Tank, Receiver Air Conditioner
88472 88472-40061 Bracket, Receiver Tank, No.1
88472 88472-40070 Bracket, Receiver Tank, No.1
88472 88472-91402 Bracket, Receiver Tank, No.1
88550 88550-20040 Motor Assy, Blower (For Condenser)
88688 88688-91401 Bracket (For Magnet Valve)
88690 88690-40100 Valve Assy, Magnet
88690 88790-91403 Valve Assy, Magnet
88691 88691-40090 Valve Assy, Magnet
88691 88691-91401 Valve Assy, Magnet
88710 88710-40041 Tube Assy, Air Conditioner
88710 88710-40100 Tube Assy, Air Conditioner
88710 88710-91412 Tube Assy, Air Conditioner
88710 88716-40360 Tube Assy, Air Conditioner
88710 88720-40020 Tube Assy, Air Conditioner
88710 88710-40130 Tube Assy, Air Conditioner
88710 88720-40040 Tube Assy, Air Conditioner
88710 88710-40150 Tube & Accessory Assy, Air Conditioner, No.2
88710 88710-91408 Tube & Accessory Assy, Air Conditioner, No.2
88711 88711-40081 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-40150 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-40070 Hose, Cooler Refrigerant Suction, No.1
88712 88712-40100 Hose, Cooler Refrigerant Suction, No.1
88712 88712-40080 Hose, Cooler Refrigerant Suction, No.1
88712 88712-40090 Hose, Cooler Refrigerant Suction, No.1
88714 88721-40030 Hose, Cooler Refrigerant Liquid, No.2
88714 88721-91401 Hose, Cooler Refrigerant Liquid, No.2
88714 88721-40050 Hose, Cooler Refrigerant Liquid, No.2
88715 88715-40060 Pipe, Cooler Refrigerant Discharge, A
88715 88715-40070 Tube, Discharge, G
88715 88715-91401 Tube, Discharge, G
88715 88715-91402 Tube, Discharge, G
88716 88716-40250 Pipe, Cooler Refrigerant Liquid, A
88716 88716-40320 Pipe, Cooler Refrigerant Liquid, A
88716 88716-40400 Pipe, Cooler Refrigerant Liquid, A
88716 88716-40420 Pipe, Cooler Refrigerant Liquid, A
88716 88716-40520 Pipe, Cooler Refrigerant Liquid, A
88716 88716-91405 Pipe, Cooler Refrigerant Liquid, A
88716 88716-91409 Pipe, Cooler Refrigerant Liquid, A
88716 88716-40281 Pipe, Cooler Refrigerant Liquid, B
88716 88716-40410 Pipe, Cooler Refrigerant Liquid, B
88716 88716-40440 Pipe, Cooler Refrigerant Liquid, B
88716 88716-91414 Pipe, Cooler Refrigerant Liquid, B
88716 88716-40262 Pipe, Cooler Refrigerant Liquid, C
88716 88716-40450 Pipe, Cooler Refrigerant Liquid, C
88716 88716-40470 Pipe, Cooler Refrigerant Liquid, C
88716 88716-91413 Pipe, Cooler Refrigerant Liquid, C
88716 88716-40500 Pipe, Cooler Refrigerant Liquid, D
88716 88716-91406 Pipe, Cooler Refrigerant Liquid, D
88716 88716-40390 Pipe, Cooler Refrigerant Liquid, E
88716 88716-40510 Pipe, Cooler Refrigerant Liquid, E
88716 88716-91411 Pipe, Cooler Refrigerant Liquid, F
88717 88717-40130 Pipe, Cooler Refrigerant Suction, A
88717 88717-40200 Pipe, Cooler Refrigerant Suction, A
88717 88717-40230 Pipe, Cooler Refrigerant Suction, A
88717 88717-91407 Pipe, Cooler Refrigerant Suction, A
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88723-28040 Label, Cooler Service Caution
88723 88723-40020 Label, Cooler Service Caution
88723 88723-40030 Label, Cooler Service Caution
91651 91651-A0614 BOLT WWASHER
91651 91653-A0614 BOLT WWASHER
8871890 88718-90K04 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95J17 Clamp(For Cooler Refrigerant Pipe), No.1
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8853691401 88536-91401 Bracket, Cooling Unit, No.1
8868840010 88688-40010 Bracket, Cooler Diaphragm
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871822630 88718-22630 Clamp(For Cooler Refrigerant Pipe), No.3
8871840170 88718-40170 Pipe, Cooler Refrigerant Suction, No.2
8871840200 88718-40200 Pipe, Cooler Refrigerant Suction, No.2
8871890402 88718-90402 Pipe, Cooler Refrigerant Suction, No.2
8871891401 88718-91401 Pipe, Cooler Refrigerant Suction, No.2
8871891405 88718-91405 Pipe, Cooler Refrigerant Suction, No.2
8889220270 88892-20270 Bracket, Cooler Evaporator Mounting
9009904376 90099-04376 New Genuine Part
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9011906072 90119-06072 Bolt
9011906330 90119-06330 Bolt
9017906068 90179-06068 New Genuine Part
9046709073 90467-09073 CLIP
9165140614 91651-40614 Bolt
9165640630 91656-40630 New Genuine Part
9165640630 91652-60630 New Genuine Part
